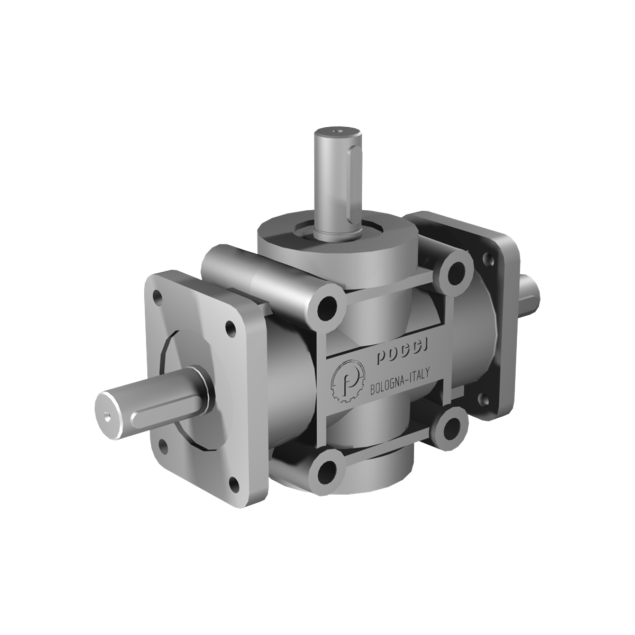

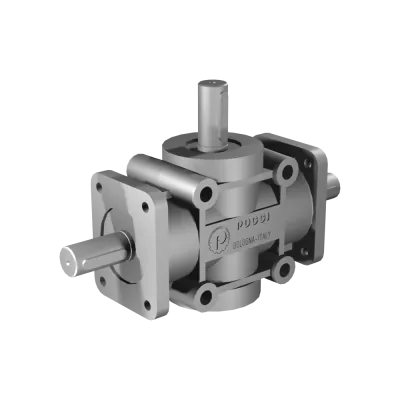

Poggi right angle gearbox 2025, R1:3, D1, Ø24h7, 3-way, Aluminium
HV3042025131The Poggi right angle gearbox 2025, R1:3, D1, Ø24h7, 3-way, Aluminium is designed for dynamic mechanical systems that require high-speed output in multiple directions. With a 1:3 gear ratio, it increases the output speed threefold while reducing torque — ideal for fast-paced operations such as sorting mechanisms, automated feed systems, or synchronized conveyor networks.
The three Ø24h7 shafts arranged in D1 configuration allow for evenly distributed 90° torque transfer from a central input. This makes it suitable for systems requiring simultaneous multi-axis motion with compact spatial integration.
Its aluminium housing offers a strong yet lightweight structure with corrosion resistance, handling 22 Nm nominal torque at 400 RPM. The standard backlash of 15'–30' ensures acceptable motion precision for general industrial automation.
Made to order
Expected shipment:
More Information
Description
The Poggi 2025 gearbox is designed for a 3-way layout with a 1:3 gear ratio and Ø24h7 shaft interfaces (D1). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Multiplies output speed — ideal for rapid movement in low-load systems. -
Configuration: D1 (3-shaft layout)
Enables 3-way torque distribution at 90°, suitable for complex drive systems. -
Shafts: Ø24h7
High-precision shafts for smooth and synchronized coupling. -
Housing: Aluminium
Lightweight and robust for use in modular and space-sensitive environments. -
Nominal torque: 22 Nm @ 400 RPM
-
Maximum speed: 400 RPM
-
Backlash: 15'–30'
