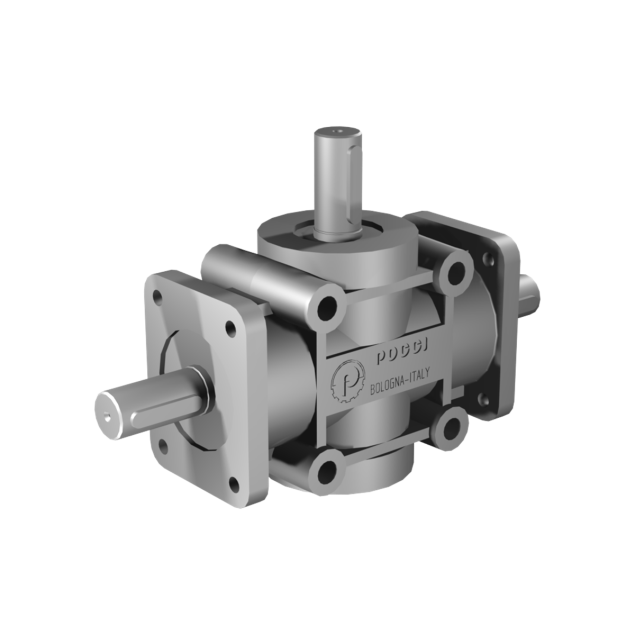

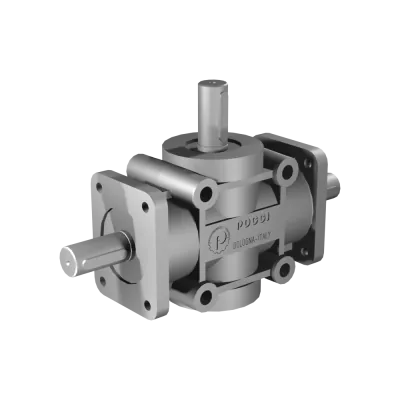

Poggi right angle gearbox 2025, R1:2, D2, Ø24h7, 3-way, Reduced backlash, Aluminium
HV3042025122SThe Poggi right angle gearbox 2025 features a 2:1 gear ratio and D2 configuration, enabling dual-output functionality through three Ø24h7 shafts. Optimized for lower-speed, higher-torque applications, this unit delivers up to 30.0 Nm @ 400 RPM with a maximum speed of 700 RPM. Its aluminium housing ensures lightweight performance and long-term resistance to corrosion.
Made to order
Expected shipment:
More Information
Description
Model 2025 from Poggi offers a 3-way layout with a 1:2 gear ratio and Ø24h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2025
-
Gear ratio: 2:1
-
Shaft configuration: D2 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 400 RPM: 30.0 Nm
-
Max speed: 700 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
