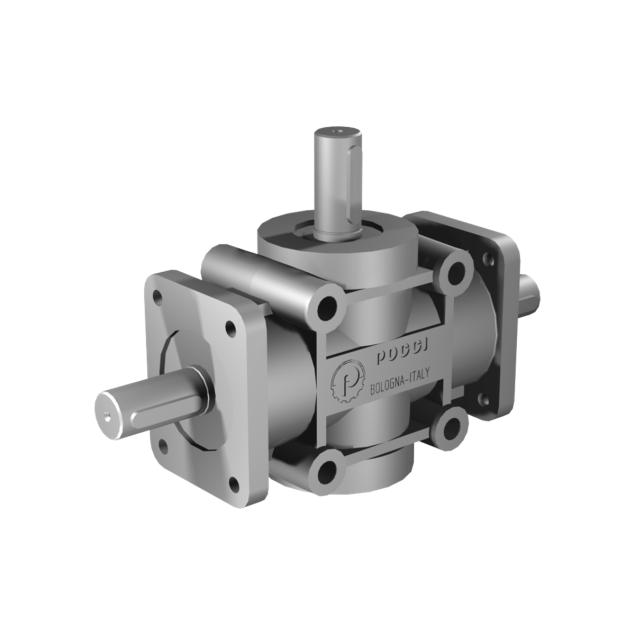

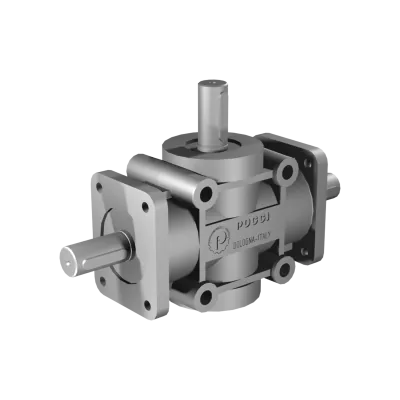

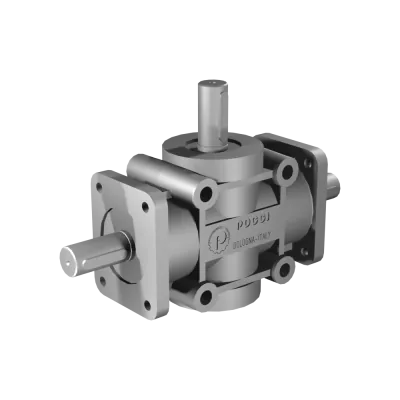

Poggi right angle gearbox 2025, R1:2, D2, Ø24h7, 3-way, Aluminium
HV3042025122The Poggi right angle gearbox 2025 with a 2:1 gear reduction and D2 configuration supports dual-output operation through three Ø24h7 shafts. Ideal for synchronized transmission systems requiring lower RPM and increased torque, this gearbox delivers up to 30.0 Nm @ 400 RPM with a maximum operating speed of 700 RPM. The aluminium housing ensures low weight and corrosion protection. Its defined backlash of 15'–30' meets the accuracy needs of automation, material handling, and OEM equipment.
Made to order
Expected shipment:
More Information
Description
Model 2025 from Poggi offers a 3-way layout with a 1:2 gear ratio and Ø24h7 shaft interfaces (D2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2025
-
Gear ratio: 2:1
-
Shaft configuration: D2 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 400 RPM: 30.0 Nm
-
Max speed: 700 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
