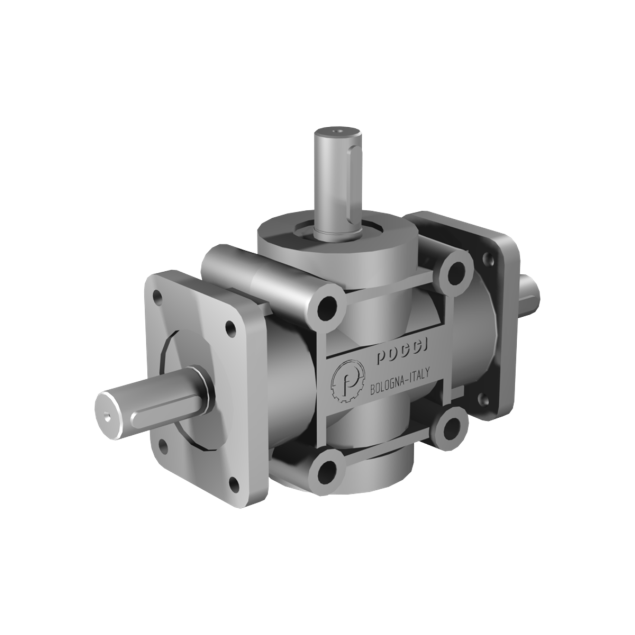

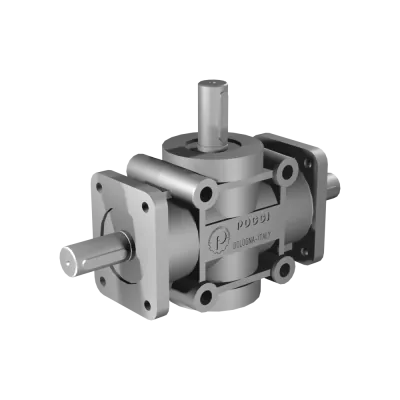

Poggi right angle gearbox 2025, R1:2, D1, Ø24h7, 3-way, Reduced backlash, Aluminium
HV3042025121SThe Poggi right angle gearbox 2025, R1:2, D1, Ø24h7, 3-way, Aluminium is an ideal solution for compact power transmission where balanced torque and moderate speed increase are needed. With a 1:2 gear ratio, it doubles the input speed while reducing output torque — suitable for material flow equipment, labeling systems, and lightweight conveyor drives.
The D1 configuration with three Ø24h7 shafts arranged at 90° enables synchronized distribution of torque to multiple components from a single input source. This makes it especially useful in modular automation systems or synchronized motion paths.
The aluminium housing ensures a lightweight and corrosion-resistant structure, supporting up to 30 Nm nominal torque at 400 RPM and a maximum speed of 700 RPM.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2025 is ideal when you need a 3-way layout with a 1:2 gear ratio and Ø24h7 shaft interfaces (D1). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:2 (R1:2)
Doubles output speed for systems that prioritize fast motion at moderate torque. -
Configuration: D1, 3-shaft layout
Distributes torque in three directions at 90°, ideal for multi-axis transmission. -
Shafts: Ø24h7
Machined for precision fit and low-vibration coupling. -
Housing: Aluminium
Lightweight and corrosion-resistant; suitable for dynamic and hygienic environments. -
Nominal torque: 30 Nm @ 400 RPM
-
Maximum speed: 700 RPM
-
Backlash: —
(Backlash not specified — contact BJ-Gear for detailed tolerances)
