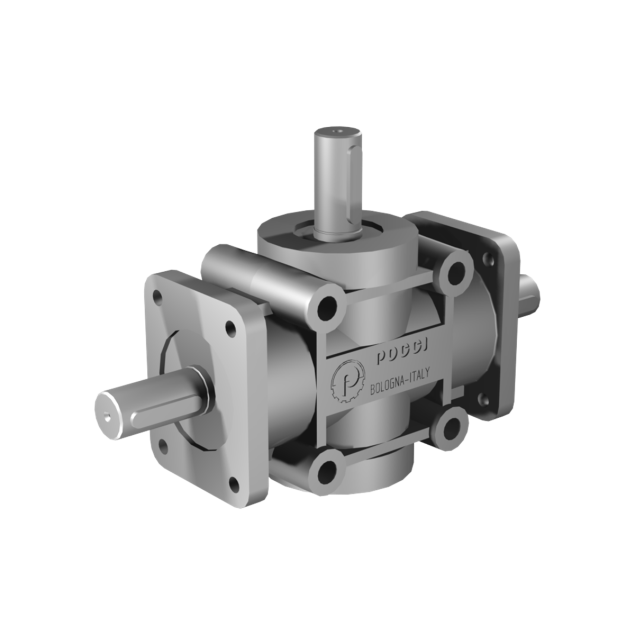

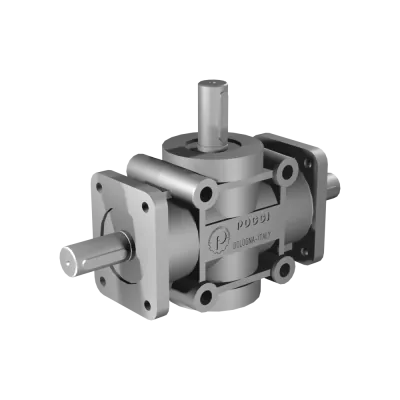

Poggi right angle gearbox 2025, R1:2, D1, Ø24h7, 3-way, Aluminium
HV3042025121The Poggi right angle gearbox 2025 features a 2:1 gear reduction with a D1 configuration and three Ø24h7 shafts, enabling efficient torque multiplication in compact industrial systems. With a maximum torque of 30.0 Nm @ 400 RPM and a top speed of 700 RPM, this gearbox ensures smooth performance in low-speed automation, conveying, or packaging machinery. Its aluminium housing ensures corrosion resistance and low weight. A backlash range of 15'–30' makes it suitable for applications where moderate accuracy is required.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2025 is ideal when you need a 3-way layout with a 1:2 gear ratio and Ø24h7 shaft interfaces (D1). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2025
-
Gear ratio: 2:1
-
Shaft configuration: D1 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 400 RPM: 30.0 Nm
-
Max speed: 700 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
