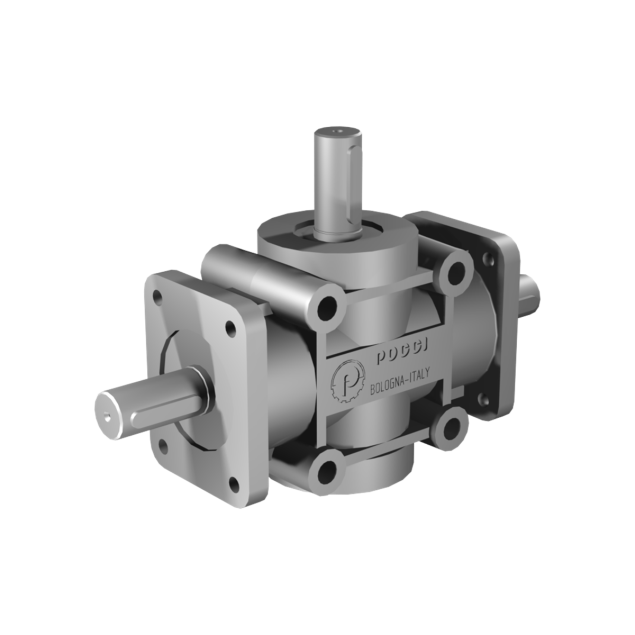

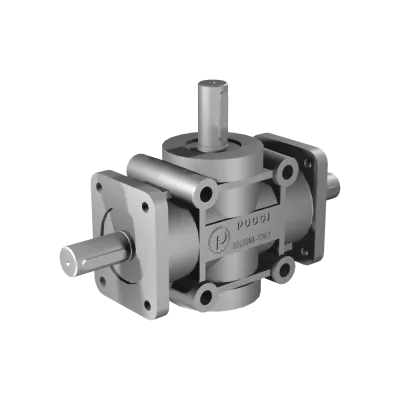

Poggi right angle gearbox 2025, R1:1, D2, Ø24h7, 3-way, Reduced backlash, Aluminium
HV3042025112SThe Poggi right angle gearbox 2025 with a 1:1 gear ratio and D2 configuration delivers balanced dual-output performance via three Ø24h7 shafts. Designed for robust, mirrored setups in industrial and OEM applications, this gearbox supports a torque output of 30.0 Nm @ 1400 RPM and allows operation at speeds up to 1400 RPM. Its aluminium housing offers corrosion resistance and a compact footprint. This variant is delivered without a defined backlash specification, making it suitable for use in moderate-precision environments.
Made to order
Expected shipment:
More Information
Description
Model 2025 from Poggi offers a 3-way layout with a 1:1 gear ratio and Ø24h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2025
-
Gear ratio: 1:1
-
Shaft configuration: D2 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 1400 RPM: 30.0 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
