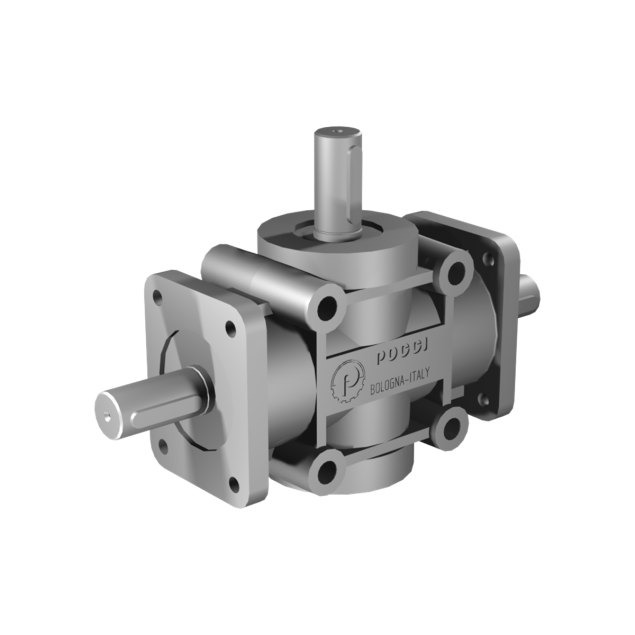

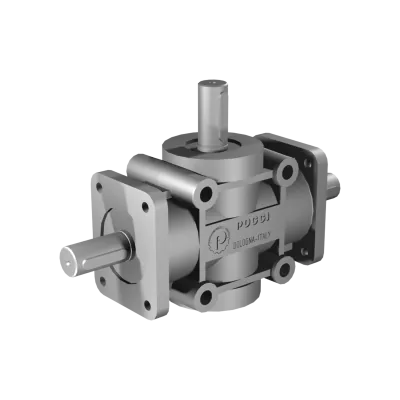

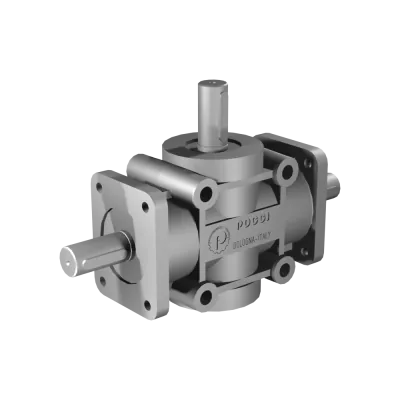

Poggi right angle gearbox 2025, R1:1, D2, Ø24h7, 3-way, Aluminium
HV3042025112The Poggi right angle gearbox 2025 combines a 1:1 gear ratio with a D2 configuration featuring three Ø24h7 shafts, ideal for dual-output or mirrored-drive applications in medium-duty setups. Constructed with a lightweight aluminium housing, it delivers up to 30.0 Nm @ 1400 RPM and supports operation at speeds up to 1400 RPM. With a backlash range of 15'–30', it offers a reliable balance between precision and performance, making it suitable for OEM, packaging, and automation applications where load symmetry and output alignment are important.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2025 is ideal when you need a 3-way layout with a 1:1 gear ratio and Ø24h7 shaft interfaces (D2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2025
-
Gear ratio: 1:1
-
Shaft configuration: D2 (3 shafts)
-
Shaft diameter: Ø24h7
-
Max torque @ 1400 RPM: 30.0 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
