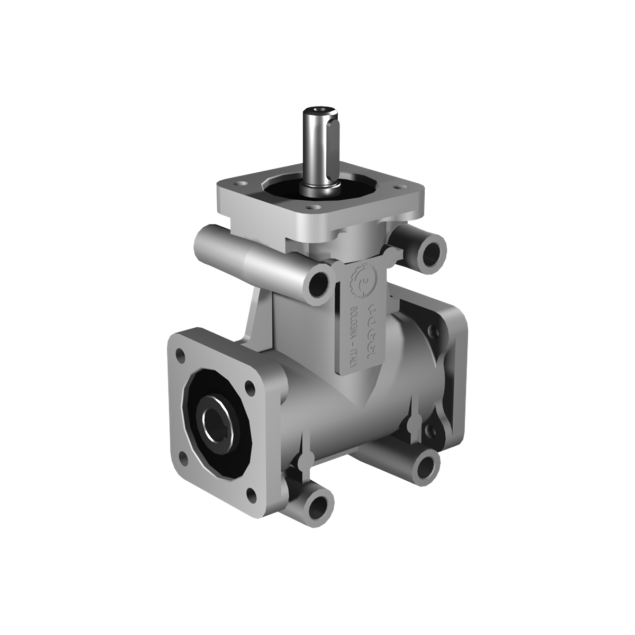

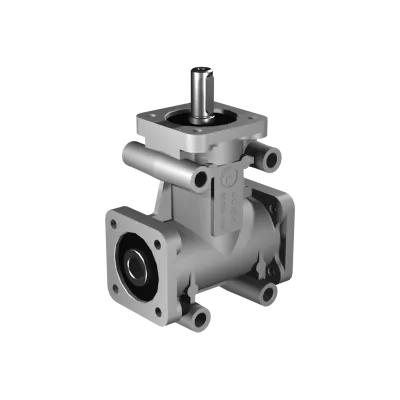

Poggi right angle gearbox 2012, R1:3, D1/2, Ø14h7 / Ø14H7, 3-way, Aluminium
HV3042012131The Poggi right angle gearbox 2012, R1:3, D1/2, Ø14h7, 3-way, Aluminium is a compact and reliable unit for directional torque transmission where space and efficiency are critical. With a 3:1 gear ratio, the gearbox significantly reduces output speed while tripling the input torque, making it ideal for torque-intensive applications such as load lifting, rotary actuators, or controlled linear motion systems.
The gearbox features three Ø14h7 shafts in a D1/2 layout, allowing synchronized drive across three 90° axes. The lightweight aluminium housing offers corrosion resistance and ensures easy integration in automation setups and compact machinery.
Rated for 8 Nm torque at 400 RPM and supporting operation up to 1000 RPM, this unit delivers precision and durability in a variety of low-speed, high-torque applications.
Made to order
Expected shipment:
More Information
Description
Poggi Right Angle Gearbox – Model 2012, R1:3, Ø14h7/Ø14H7, 3-Way Output, D1/2, Aluminium
The Poggi 2012 is a 3-way right-angle gearbox engineered for compact mechanical systems requiring multi-directional torque output. With a 1:3 gear ratio, it reduces output speed while increasing torque, offering reliable control in synchronized and load-sensitive applications.
Featuring Ø14 mm h7 and H7 shafts in a D1/2 configuration, this gearbox provides two outputs from one input, simplifying multi-axis setups. The internal spiral bevel gears deliver smooth, efficient torque transfer with minimal vibration and long service intervals.
Its aluminium housing ensures a strong yet lightweight construction, ideal for automation cells, handling systems, and mobile or modular equipment. The gearbox is pre-lubricated and sealed for life, offering maintenance-free performance and reduced total cost of ownership.
Whether used in material handling, drive distribution, or synchronized motion control, the Poggi 2012 delivers compact design, durability, and operational flexibility.
-
Gear ratio: 3:1 (R1:3)
Reduces speed and multiplies torque — suitable for positioning and torque-sensitive loads. -
Configuration: D1/2, 3-shaft layout
Enables three-way drive configuration for distributed mechanical output. -
Shaft diameter: Ø14h7
Precision-machined for accurate alignment and long service life. -
Housing material: Aluminium
Lightweight, durable, and corrosion-resistant for integration in compact systems. -
Nominal torque: 8 Nm @ 400 RPM
-
Maximum speed: 1000 RPM
-
Backlash: 15–30′
