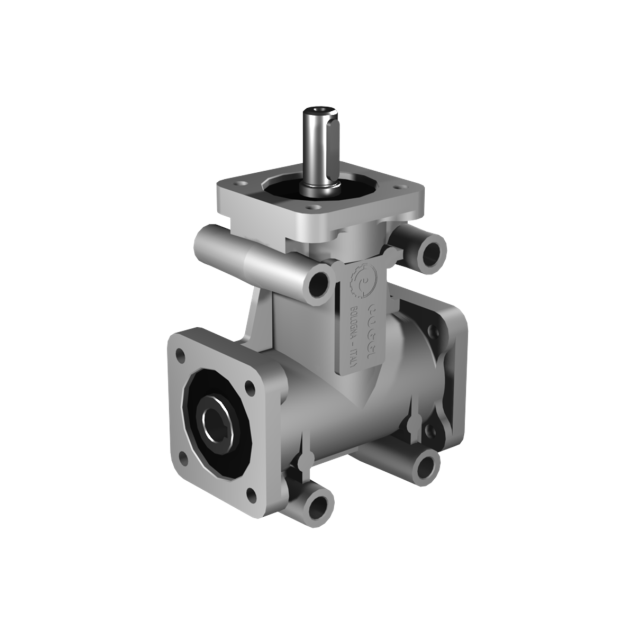

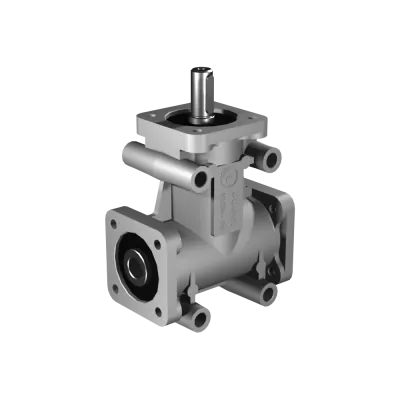

Poggi right angle gearbox 2012, R1:2, D1/2, Ø14h7 / Ø14H7, 3-way, Reduced backlash, Aluminium
HV3042012121SThe Poggi right angle gearbox 2012, R1:2, D1/2, Ø14h7, 3-way, Aluminium – Stainless Shaft Version is engineered for torque amplification in applications where rotational speed needs to be halved and torque doubled across compact multi-axis systems. With a 2:1 gear ratio, this unit is well-suited for small-scale positioning systems, conveyor modules, or load-sensitive automation lines.
Equipped with three Ø14h7 stainless steel shafts in a D1/2 configuration, the gearbox allows versatile power distribution across three perpendicular directions. Its aluminium housing minimizes overall weight, contributing to easier integration and energy-efficient operation.
Rated for up to 14 Nm torque at 1400 RPM and a maximum speed of 1400 RPM, the gearbox is tailored for reliable performance under steady operating loads.
Made to order
Expected shipment:
More Information
Description
Poggi Right Angle Gearbox – Model 2012, R1:2, Ø14h7/Ø14H7, 3-Way Output, D1/2, Reduced Backlash, Aluminium
The Poggi 2012 is a precision 3-way right-angle gearbox designed for applications that demand controlled torque multiplication and tight positional accuracy. With a 1:2 gear ratio, it increases torque output while reducing speed, making it ideal for mechanical systems with load-sensitive dynamics.
Its D1/2 configuration delivers dual outputs with Ø14 mm h7 and H7 shafts, offering consistent torque distribution across multiple axes. The reduced backlash design ensures minimal angular play, supporting high repeatability and smooth synchronization — especially in servo-driven motion platforms or automation lines.
Constructed with a robust aluminium housing, the gearbox provides corrosion resistance and effective thermal management, while keeping weight to a minimum. Spiral bevel gears ensure quiet, efficient operation, and the unit is pre-lubricated and sealed for life, requiring no maintenance.
Whether integrated into robotic arms, high-precision conveyors, or synchronized drive systems, the Poggi 2012 gearbox delivers precision, reliability, and space-efficient performance.
-
Gear ratio: 2:1 (R1:2)
Reduces output speed while boosting input torque — ideal for controlled drive applications. -
Configuration: D1/2, 3-shaft layout
Enables flexible power distribution across three 90° output axes. -
Shaft diameter: Ø14h7 (Stainless steel)
Precision shafts for smooth torque transmission and enhanced corrosion resistance. -
Housing material: Aluminium
Combines lightweight properties with mechanical stability for versatile installation. -
Nominal torque: 14 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
