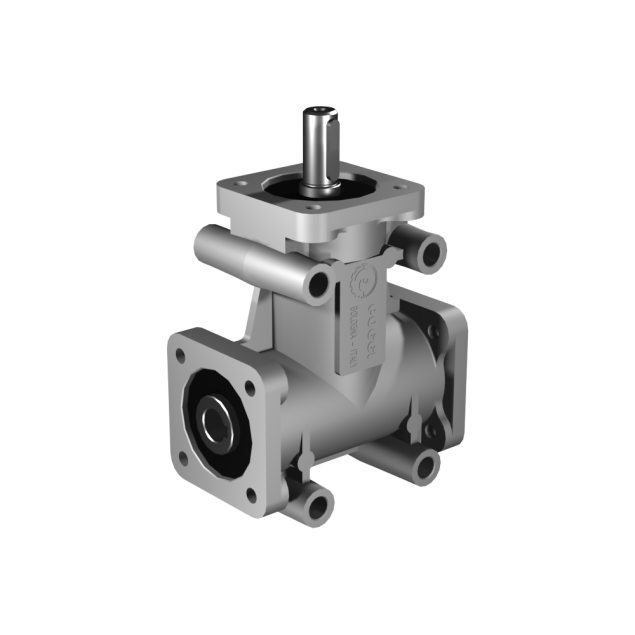

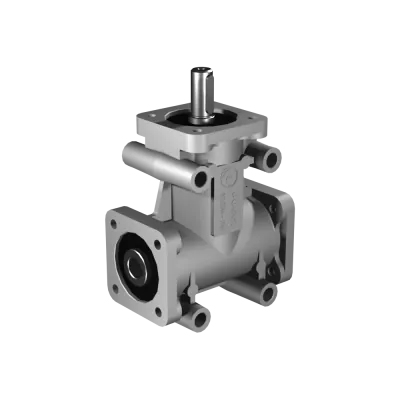

Poggi right angle gearbox 2012, R1:2, D1/2, Ø14h7 / Ø14H7, 3-way, Aluminium
HV3042012121The Poggi right angle gearbox 2012, R1:2, D1/2, Ø14h7, 3-way, Aluminium is designed for applications requiring efficient torque multiplication and power redirection in three axes. With a gear ratio of 2:1, it doubles the torque while halving the output speed, making it well-suited for slower, force-driven mechanisms such as indexing systems, actuators, or multi-axis transport lines.
Fitted with three Ø14h7 precision shafts in a D1/2 configuration, the gearbox enables synchronized three-way motion transmission. The aluminium housing offers a corrosion-resistant and weight-saving solution that integrates seamlessly into modern machine layouts or modular production systems.
Rated for 14 Nm at 1400 RPM and a maximum speed of 1400 RPM, this gearbox ensures long-lasting and quiet operation even in continuous-duty cycles.
Made to order
Expected shipment:
More Information
Description
Poggi Right Angle Gearbox – Model 2012, R1:2, Ø14h7/Ø14H7, 3-Way Output, D1/2, Aluminium
The Poggi 2012 is a 3-way right-angle gearbox designed for multi-directional torque transmission in compact mechanical assemblies. With a 1:2 gear ratio, it increases torque while reducing output speed — ideal for applications requiring efficient load handling and motion control.
The D1/2 configuration features Ø14 mm h7 and H7 shafts for dual synchronized output. This allows for precise, evenly distributed torque delivery across multiple axes, making the unit suitable for material handling, compact automation systems, and drive synchronization tasks.
The gearbox housing is made of lightweight, corrosion-resistant aluminium, balancing strength and durability while keeping the footprint and system weight low. Inside, spiral bevel gears ensure quiet operation, high mechanical efficiency, and long-term reliability.
Factory-lubricated and sealed for life, the Poggi 2012 requires no maintenance, offering cost-efficient performance and flexible integration into modern industrial machinery.
-
Gear ratio: 2:1 (R1:2)
Doubles torque output — ideal for systems where load handling outweighs speed requirements. -
Configuration: D1/2, 3-shaft
Enables motion output in three orthogonal directions for versatile mechanical routing. -
Shafts: Ø14h7
Precision-machined steel shafts ensure reliable, backlash-minimized torque transmission. -
Housing: Aluminium
Lightweight and resistant to corrosion — optimised for flexible machine integration. -
Nominal torque: 14 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: 15–30′
