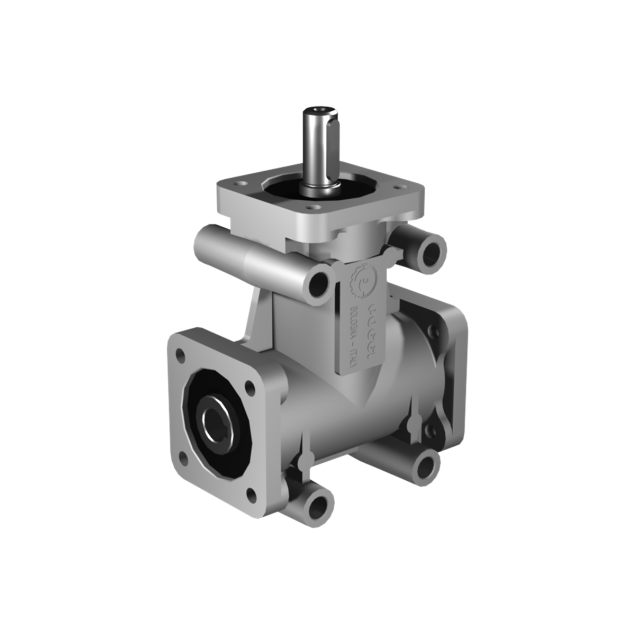

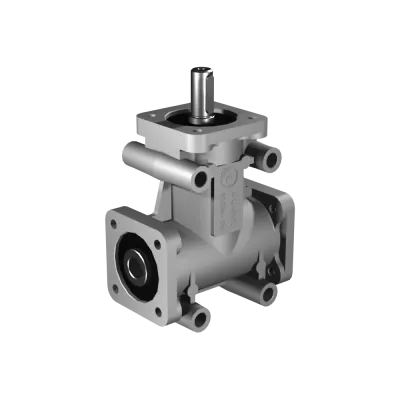

Poggi right angle gearbox 2012, R1:1, D1/2, Ø14h7 / Ø14H7, 3-way, Reduced backlash, Aluminium
HV3042012111SThe Poggi right angle gearbox 2012, R1:1, D1/2, Ø14h7, 3-way, Aluminium – Stainless Shaft Version is engineered for applications requiring equal-speed, multi-directional power transfer in compact installations. The 1:1 gear ratio ensures input speed and torque are maintained across all three axes, making this model ideal for mirrored or synchronous mechanical systems in packaging, handling, or light automation environments.
Fitted with three precision stainless steel shafts (Ø14h7) in a D1/2 configuration, the gearbox ensures stable torque distribution in 90° directions. The aluminium housing provides corrosion resistance and low weight, which simplifies mounting in both mobile systems and cleanroom production.
With a torque capacity of 17 Nm at 1400 RPM and support for up to 3000 RPM, this gearbox delivers robust and durable performance under continuous operation.
Made to order
Expected shipment:
More Information
Description
The Poggi 2012 is a high-precision 3-way right-angle gearbox, optimized for systems where rotational accuracy and mechanical synchronization are critical. With a 1:1 gear ratio, it ensures direct and equal-speed torque transmission across all three axes — ideal for synchronized drive systems and multi-axis coordination.
Configured with D1/2 layout and dual Ø14 mm shafts (h7 and H7 tolerance), the gearbox enables multi-directional torque output from a single input. The reduced backlash gearing minimizes angular play, providing stable, responsive positioning in servo-driven and feedback-regulated motion systems.
Its aluminium housing offers a strong yet lightweight structure that facilitates thermal efficiency and corrosion resistance. Inside, spiral bevel gears ensure efficient and low-noise operation, while the sealed, pre-lubricated assembly guarantees maintenance-free long-term reliability.
Whether integrated into robotics, handling automation, or motion control platforms, the Poggi 2012 delivers repeatable precision, durable design, and compact versatility.
-
Gear ratio: 1:1 (R1:1)
Maintains original input speed — perfect for synchronized actuation or power transfer. -
Configuration: D1/2, 3-way
Allows torque output in three orthogonal axes, simplifying compact mechanical layouts. -
Shafts: Ø14h7, stainless steel
Resistant to corrosion and wear — ideal for hygienic or harsh environments. -
Housing: Aluminium
Lightweight and corrosion-resistant — reduces installation load and increases durability. -
Nominal torque: 17 Nm @ 1400 RPM
-
Maximum speed: 3000 RPM
