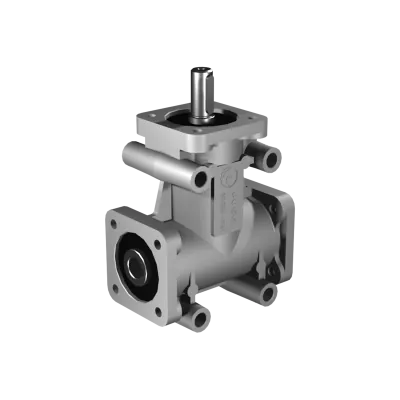

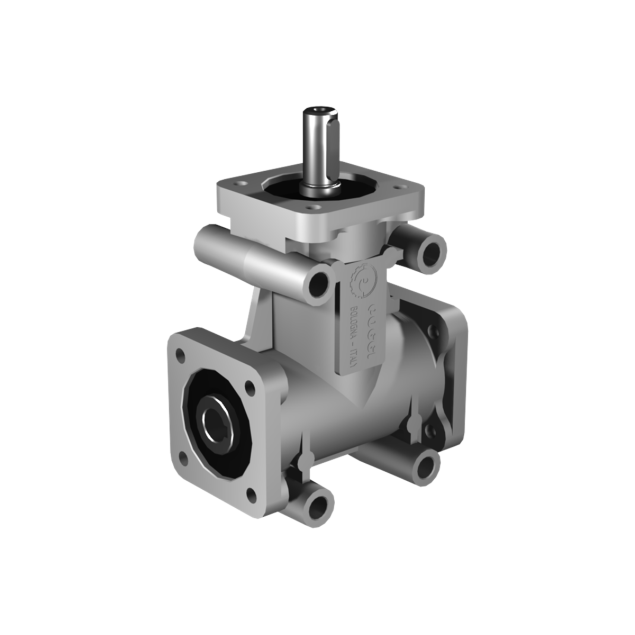

Poggi right angle gearbox 2012, R1:1, D1/2, Ø14h7 / Ø14H7, 3-way, Aluminium

HV3042012111

The Poggi right angle gearbox 2012, R1:1, D1/2, Ø14h7, 3-way, Aluminium is a lightweight and compact solution for applications requiring equal-speed directional power transmission. With a 1:1 gear ratio, it maintains the input speed and torque across all three axes — ideal for synchronized movement in handling equipment, conveyor setups, and drive systems with uniform transmission requirements.

Equipped with three precision Ø14h7 shafts in a D1/2 configuration, this unit enables three-way torque distribution, making it particularly useful for parallel or mirrored actuation. Its aluminium housing ensures easy installation in tight automation spaces while offering resistance to wear and environmental influences.

With a maximum torque rating of 17 Nm at 1400 RPM and a high operational limit of 3000 RPM, this gearbox ensures reliable and smooth performance under continuous operation.

€327.00

Excluded taxes and delivery costs

In stock

Expected shipment:

Estimated Shipping:

Description

Poggi Right Angle Gearbox – Model 2012, R1:1, Ø14h7/Ø14H7, 3-Way Output, D1/2, Aluminium

The Poggi 2012 right angle gearbox offers a 1:1 gear ratio in a compact, 3-way D1/2 configuration, designed to distribute torque evenly across multiple axes. It features Ø14 mm h7 and H7 shafts, ensuring precise alignment and smooth operation in synchronized drive systems.

Ideal for space-limited setups, the aluminium housing keeps system weight low without compromising durability or thermal performance. This makes it especially well-suited for robotic arms, compact conveyors, packaging machines, and modular drive units.

The gearbox is equipped with spiral bevel gears, delivering high mechanical efficiency and low operating noise. It is factory-sealed and pre-lubricated, offering zero-maintenance operation and a long service life, even under continuous-duty conditions.

Built for compact performance, multi-axis output, and installation flexibility, the Poggi 2012 is a proven solution for modern machine builders and automation integrators.

Gear ratio: 1:1 (R1:1)
Maintains input speed and torque — optimal for synchronized rotary applications.
Configuration: D1/2, 3-shaft layout
Enables torque distribution in three 90° directions — useful in branching drive setups.
Shaft diameter: Ø14h7
Precision machined for minimal backlash and accurate motion transfer.
Housing: Aluminium
Corrosion-resistant, lightweight material suitable for automation environments.
Nominal torque: 17 Nm @ 1400 RPM
Maximum speed: 3000 RPM
Backlash: 15–30′
