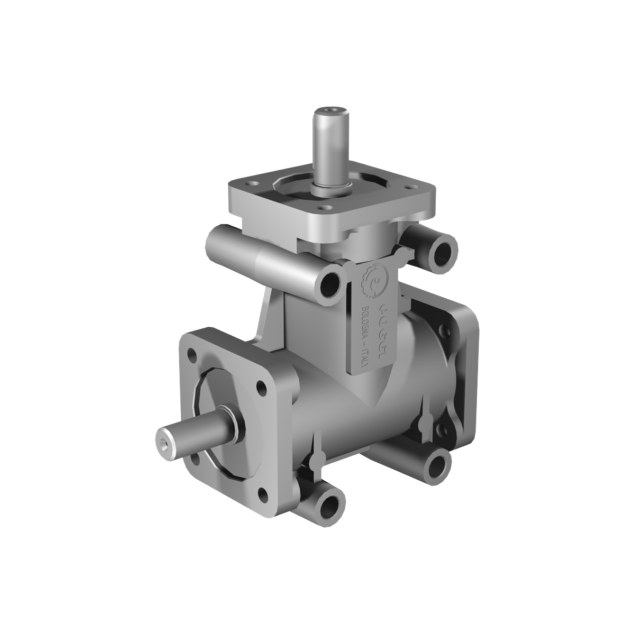

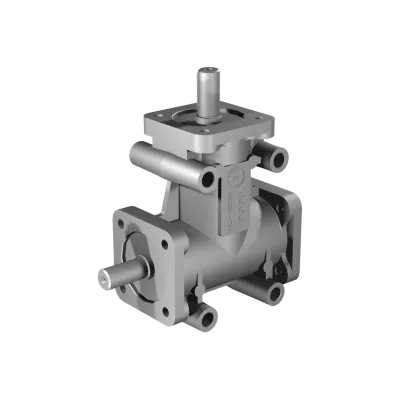

Poggi right angle gearbox 2011, R1:3, D2, Ø14h7, 2-way, Reduced backlash, Aluminium
HV3042011132SThe Poggi right angle gearbox 2011, R1:3, D2, Ø14h7, 2-way, Aluminium is a compact transmission solution for systems where directional output and increased speed are essential. Its 1:3 gear ratio enables the output shafts to rotate three times faster than the input, ideal for applications such as conveyor drives, labeling machines, or sorting stations with high cycle demands.
This model features two Ø14h7 shafts arranged in a D2 configuration, allowing simultaneous bidirectional transmission at 90° angles. The aluminium housing is lightweight and corrosion-resistant, making it suitable for hygienic and compact automation setups.
Rated for 11 Nm nominal torque at 400 RPM, this unit combines performance with a compact footprint, supporting up to 1000 RPM.
Made to order
Expected shipment:
More Information
Description
Model 2011 from Poggi offers a 2-way layout with a 1:3 gear ratio and Ø14h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Increases output speed while lowering torque — perfect for fast-cycling applications. -
Configuration: D2 (2-shaft layout)
Allows dual output at 90°, suitable for symmetric drives or splitting motion paths. -
Shafts: Ø14h7
Precision-ground shafts ensure reliable engagement and smooth power transfer. -
Housing: Aluminium
Durable and lightweight; corrosion-resistant and ideal for integration in hygienic or space-constrained environments. -
Nominal torque: 11 Nm @ 400 RPM
-
Maximum speed: 1000 RPM
-
Backlash: —
(Backlash not specified — contact BJ-Gear for tolerance information)
