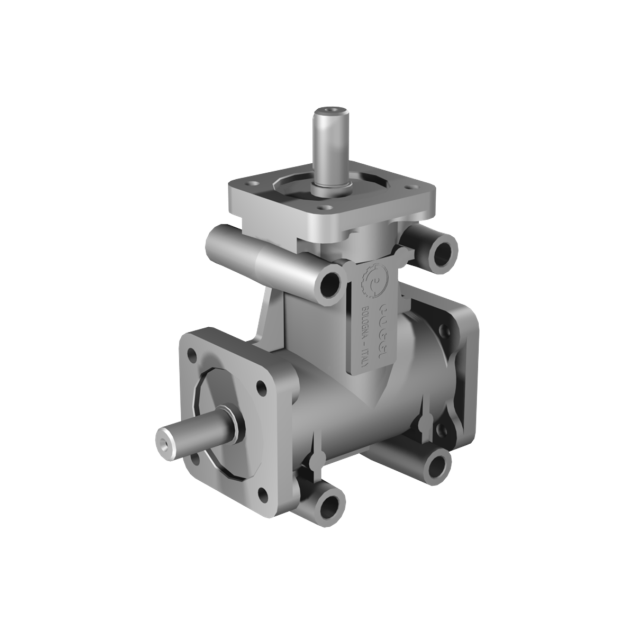

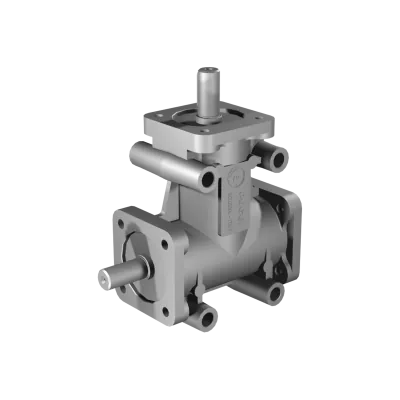

Poggi right angle gearbox 2011, R1:3, D2, Ø14h7, 2-way, Aluminium
HV3042011132The Poggi right angle gearbox 2011, R1:3, D2, Ø14h7, 2-way, Aluminium is designed for compact mechanical systems requiring increased output speed and directional torque transfer. With a gear ratio of 1:3, this unit multiplies the input speed threefold, making it particularly useful in applications where faster actuation is needed in limited space—such as light material handling equipment, sorting mechanisms, or automated inspection modules.
It features two precision shafts Ø14h7 in D2 configuration, providing dual output at right angles from the input. The aluminium housing offers lightweight performance and good corrosion resistance, making it well-suited for integration into fast-paced automation environments.
The gearbox handles up to 11 Nm nominal torque at 400 RPM, with a maximum speed of 1000 RPM and a standard backlash range of 15'–30'.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2011 delivers a 2-way layout with a 1:3 gear ratio and Ø14h7 shaft interfaces (D2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Triples output speed — ideal for dynamic, low-torque applications requiring fast motion. -
Configuration: D2, 2-shaft layout
Dual output configuration for symmetrical right-angle drives. -
Shafts: Ø14h7
Precision-machined steel shafts for optimal fit and minimal backlash. -
Housing: Aluminium
Durable and lightweight — suitable for modular and compact installations. -
Nominal torque: 11 Nm @ 400 RPM
-
Maximum speed: 1000 RPM
-
Backlash: 15'–30'
