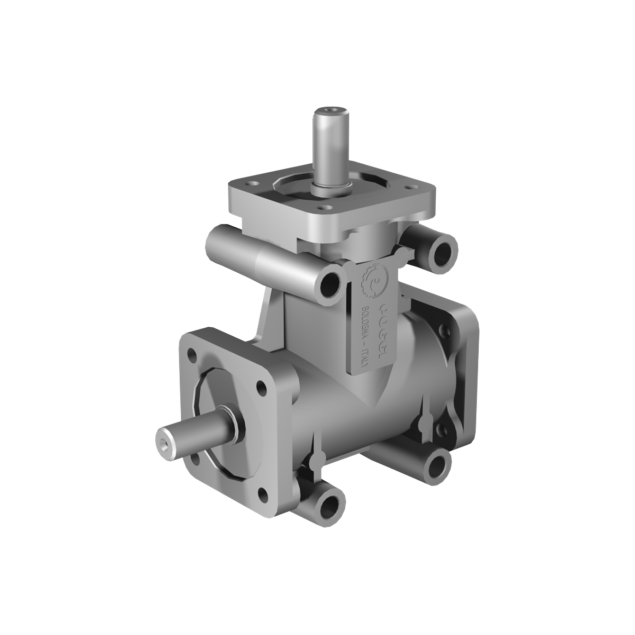

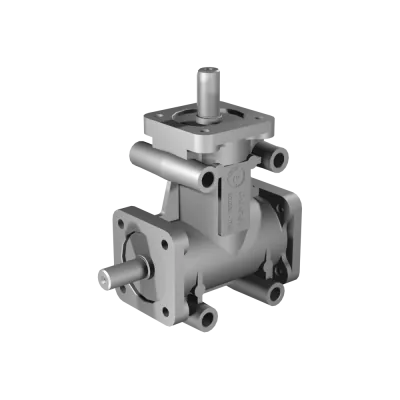

Poggi right angle gearbox 2011, R1:3, D1, Ø14h7, 2-way, Reduced backlash, Aluminium
HV3042011131SThe Poggi right angle gearbox 2011, R1:3, D1, Ø14h7, 2-way, Aluminium is engineered for applications requiring directional power transmission with torque reduction and speed multiplication. With a gear ratio of 1:3, the output shaft rotates three times faster than the input—ideal for lightweight machinery where space is limited and speed efficiency is critical.
Equipped with two Ø14h7 precision shafts in a D1 configuration, this gearbox ensures smooth torque delivery in right-angle setups. The lightweight aluminium housing offers excellent corrosion resistance and easy integration into automated equipment and mechanical systems with high duty cycles.
With a maximum torque rating of 11 Nm at 400 RPM and a maximum speed of 1000 RPM, this compact gearbox is well suited for use in robotics, packaging lines, and light material handling applications.
Made to order
Expected shipment:
More Information
Description
The Poggi 2011 gearbox is designed for a 2-way layout with a 1:3 gear ratio and Ø14h7 shaft interfaces (D1). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:3 (R1:3)
Increases output speed while reducing torque — ideal for low-load, high-speed applications. -
Configuration: D1, 2-shaft layout
Transmits power at 90° between input and output for directional transitions. -
Shafts: Ø14h7
Precision-engineered shafts provide secure coupling and minimal vibration. -
Housing: Aluminium
Durable, corrosion-resistant, and optimized for lightweight assembly environments. -
Nominal torque: 11 Nm @ 400 RPM
-
Maximum speed: 1000 RPM
-
Backlash: —
(Backlash not specified — contact BJ-Gear for specific tolerances)
