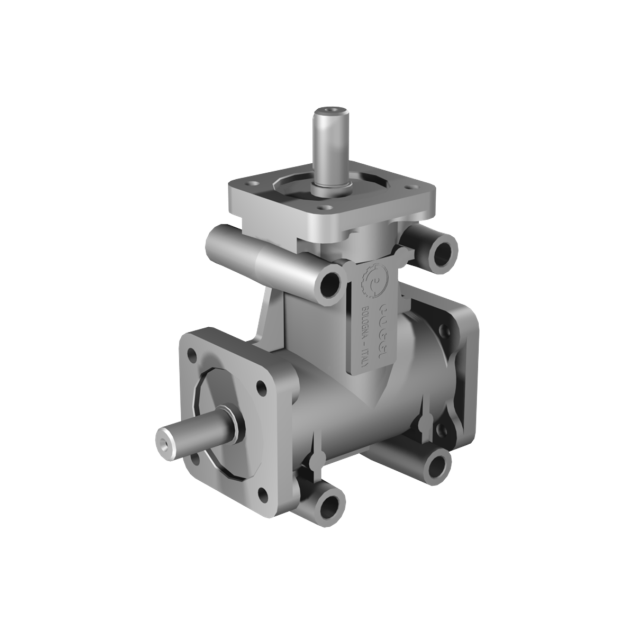

Poggi right angle gearbox 2011, R1:2, D2, Ø14h7, 2-way, Reduced backlash, Aluminium
HV3042011122SThe Poggi right angle gearbox 2011, R1:2, D2, Ø14h7, 2-way, Aluminium is a lightweight and compact gear solution for right-angle mechanical power transmission, designed to double output speed with its 1:2 gear ratio. This configuration is particularly useful in applications that require motion acceleration in limited space—such as automated dispensing units, sorting mechanisms, or drive systems with variable rotational requirements.
It features two Ø14h7 precision shafts in a D2 layout, making it ideal for symmetrical output distribution at 90° angles. The aluminium housing ensures low weight and excellent resistance to corrosion, supporting integration in high-cycle, space-sensitive systems.
Rated at 10 Nm nominal torque at 1400 RPM, this gearbox is engineered for dependable and efficient performance across a wide range of light industrial applications.
Made to order
Expected shipment:
More Information
Description
Model 2011 from Poggi offers a 2-way layout with a 1:2 gear ratio and Ø14h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:2 (R1:2)
Doubles output speed — suitable for acceleration drives and dynamic positioning systems. -
Configuration: D2, 2-shaft layout
Allows bidirectional output at 90°, ideal for compact motion assemblies. -
Shafts: Ø14h7
High-precision output shafts for consistent alignment and smooth torque transfer. -
Housing: Aluminium
Corrosion-resistant and lightweight — optimised for space-limited applications. -
Nominal torque: 10 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: —
(Backlash data not available — contact BJ-Gear for specific tolerances)
