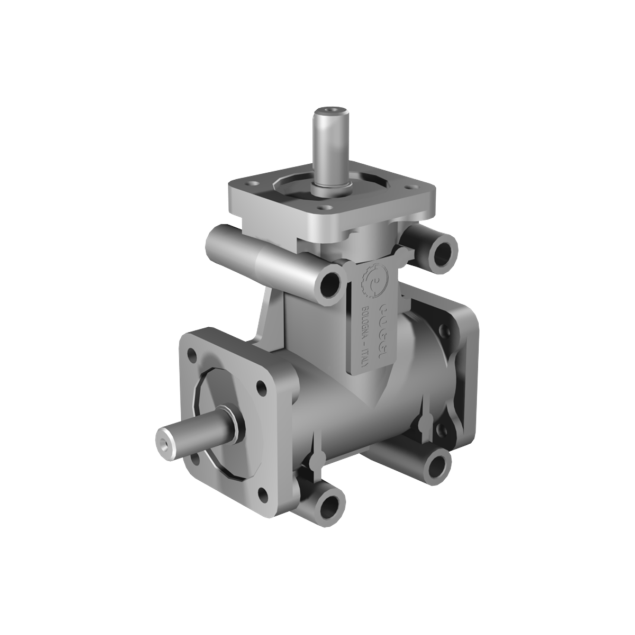

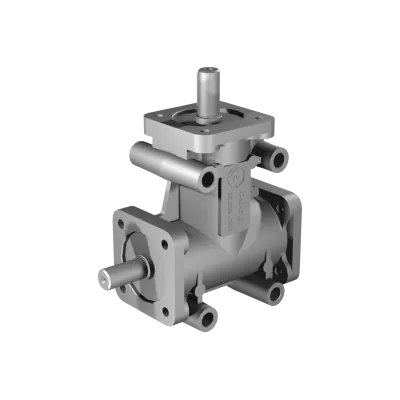

Poggi right angle gearbox 2011, R1:1, D2, Ø14h7, 2-way, Reduced backlash, Aluminium
HV3042011112SThe Poggi right angle gearbox 2011, R1:1, D2, Ø14h7, 2-way, Aluminium is a compact and lightweight solution for transferring mechanical power at a 90° angle. Designed for installations where directional power transmission is needed in two outputs, this gearbox features a gear ratio of 1:1, ensuring that input speed and torque are mirrored at both output shafts.
It comes with two Ø14h7 output shafts in D2 configuration, suitable for applications such as small conveyors, diverter units, or automation modules. The aluminium housing provides a strong yet corrosion-resistant structure, well-suited for high-speed, lightweight industrial systems.
The gearbox supports up to 13 Nm nominal torque at 1400 RPM, and handles speeds of up to 3000 RPM, making it a reliable choice for dynamic environments.
Made to order
Expected shipment:
More Information
Description
The Poggi 2011 gearbox is designed for a 2-way layout with a 1:1 gear ratio and Ø14h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:1 (R1:1)
Maintains consistent input/output speed — ideal for synchronised power transmission. -
Configuration: D2, 2-shaft layout
Transmits torque in two opposing 90° directions for versatile system integration. -
Shafts: Ø14h7
Precision-machined steel shafts — ensures secure coupling with low play. -
Housing: Aluminium
Corrosion-resistant and lightweight — ideal for high-speed, compact setups. -
Nominal torque: 13 Nm @ 1400 RPM
-
Maximum speed: 3000 RPM
-
Backlash: —
(Backlash data not specified — contact BJ-Gear for application-specific tolerances)
