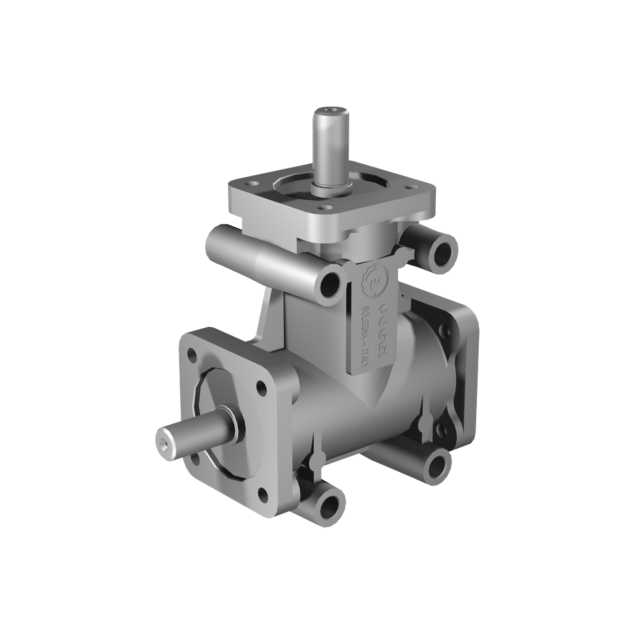

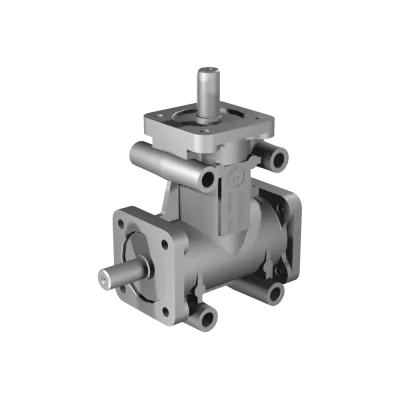

Poggi right angle gearbox 2011, R1:1, D2, Ø14h7, 2-way, Aluminium
HV3042011112The Poggi right angle gearbox 2011 combines a 1:1 gear ratio with a D2 shaft configuration, making it ideal for mirrored dual-output systems. It is equipped with two Ø14h7 shafts and a robust yet lightweight aluminium housing, delivering performance and corrosion resistance in a compact format. With a rated output of 13.0 Nm @ 1400 RPM and support for speeds up to 3000 RPM, this gearbox fits seamlessly into synchronized automation and OEM equipment. It includes a defined backlash range of 15'–30' for moderate precision applications.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2011 is ideal when you need a 2-way layout with a 1:1 gear ratio and Ø14h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2011
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 output shafts)
-
Shaft diameter: Ø14h7
-
Max torque @ 1400 RPM: 13.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
