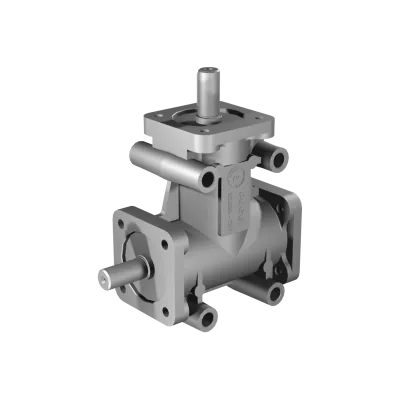

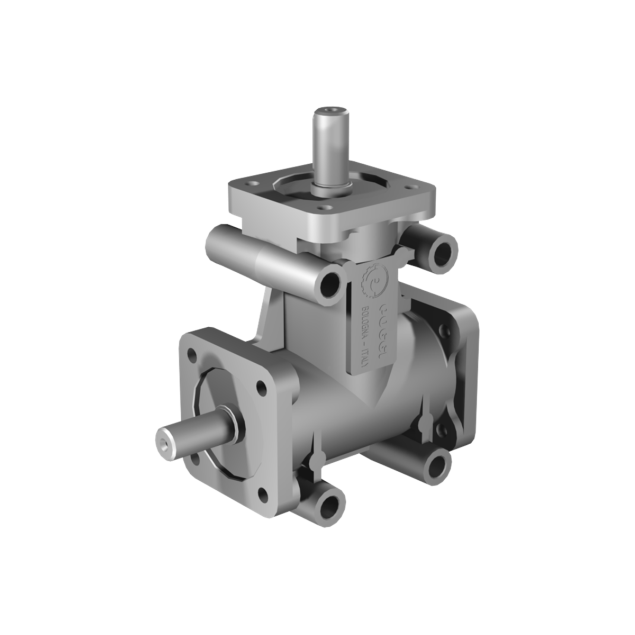

Poggi right angle gearbox 2011, R1:1, D1, Ø14h7, 2-way, Reduced backlash, Aluminium
HV3042011111SThe Poggi right angle gearbox 2011, R1:1, D1, Ø14h7, 2-way, Aluminium – Stainless Shaft Version is a compact and hygienic transmission solution designed for high-speed, corrosion-prone environments. With a 1:1 gear ratio, this gearbox provides synchronized torque transfer, ideal for applications such as twin drive systems, mirrored motion control, or linear synchronization.
Its D1 configuration features two opposing Ø14h7 stainless steel shafts, ensuring precise torque transmission with high corrosion resistance — making it especially suited for food processing, packaging, or wet industrial environments. The aluminium housing reduces overall weight and enhances installation flexibility.
Capable of handling 13 Nm torque at 1400 RPM, it supports continuous operation at up to 3000 RPM with minimal maintenance requirements.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2011 is ideal when you need a 2-way layout with a 1:1 gear ratio and Ø14h7 shaft interfaces (D1). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear ratio: 1:1 (R1:1)
Maintains equal input-output speed — suitable for synchronized shaft drives. -
Configuration: D1, 2-shaft layout
Straight-line torque transmission between input and output. -
Shaft diameter: Ø14h7 (Stainless steel)
High precision with corrosion resistance for washdown zones. -
Material: Aluminium housing
Lightweight and durable, ideal for compact systems. -
Nominal torque: 13 Nm @ 1400 RPM
-
Maximum speed: 3000 RPM
