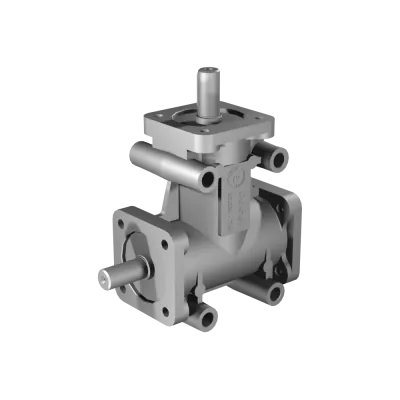

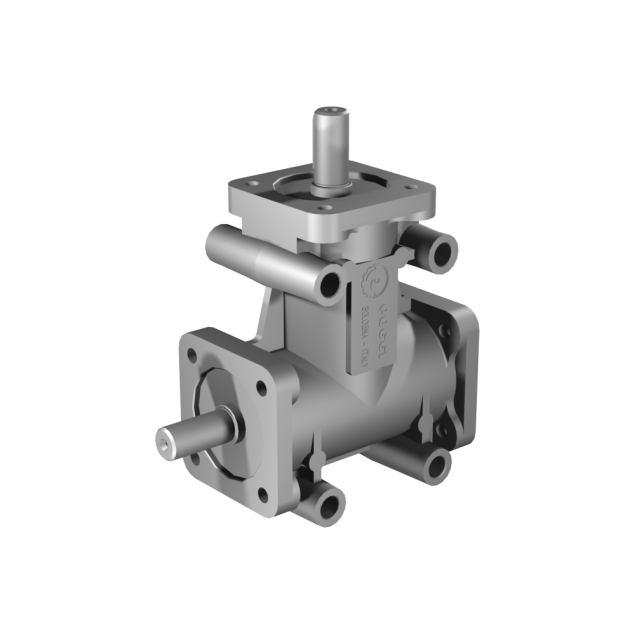

Poggi right angle gearbox 2011, R1:1, D1, Ø14h7, 2-way, Aluminium
HV3042011111The Poggi right angle gearbox 2011, R1:1, D1, Ø14h7, 2-way, Aluminium is a compact and durable solution for transmitting mechanical power between perpendicular axes without altering the rotational speed. With a 1:1 gear ratio, this gearbox is ideal for applications requiring precise motion transfer, such as synchronized shafts, rotary tables, or compact conveyor systems.
The D1 configuration includes two Ø14h7 shafts, arranged for efficient two-directional torque transmission. The aluminium housing offers both corrosion resistance and low weight, which is especially beneficial in space-constrained or mobile equipment. With a maximum operating speed of 3000 RPM and 13 Nm nominal torque at 1400 RPM, the gearbox performs reliably under continuous operation.
Made to order
Expected shipment:
More Information
Description
Poggi Right Angle Gearbox – Model 2011, R1:1, Ø14h7, 2-Way Output, D1, Aluminium
The Poggi 2011 is a 2-way right-angle gearbox engineered for precise and efficient torque transmission in space-limited mechanical systems. With a 1:1 gear ratio, it delivers equal input and output speeds, making it well-suited for direct-drive synchronization and mechanical linkage applications.
This model features Ø14 mm shafts (h7 tolerance) on both input and output in the D1 configuration, ensuring reliable coupling and minimal misalignment. The lightweight aluminium housing delivers durability with excellent heat dissipation and corrosion resistance, without adding unnecessary mass — ideal for integration into mobile equipment, compact machines, or robotic systems.
The internal spiral bevel gear design provides high-efficiency, smooth, and quiet operation, even under continuous or high-speed duty cycles. Pre-lubricated and sealed for life, the gearbox requires no ongoing maintenance, supporting uptime and operational reliability.
Whether integrated into motion control systems, conveyors, or light-duty industrial equipment, the Poggi 2011 offers a practical and robust solution for two-axis right-angle power transmission.
-
Gear ratio: 1:1 (R1:1)
Maintains input-output speed – ideal for synchronized rotation. -
Configuration: D1, 2-shaft
Supports bi-directional torque transfer at 90° angle. -
Shaft diameter: Ø14h7
Precision-toleranced for minimal play and consistent performance. -
Housing material: Aluminium
Lightweight and corrosion-resistant for versatile integration. -
Backlash: 15–30′
Provides controlled rotation with low mechanical play. -
Nominal torque: 13 Nm @ 1400 RPM
-
Maximum speed: 3000 RPM
