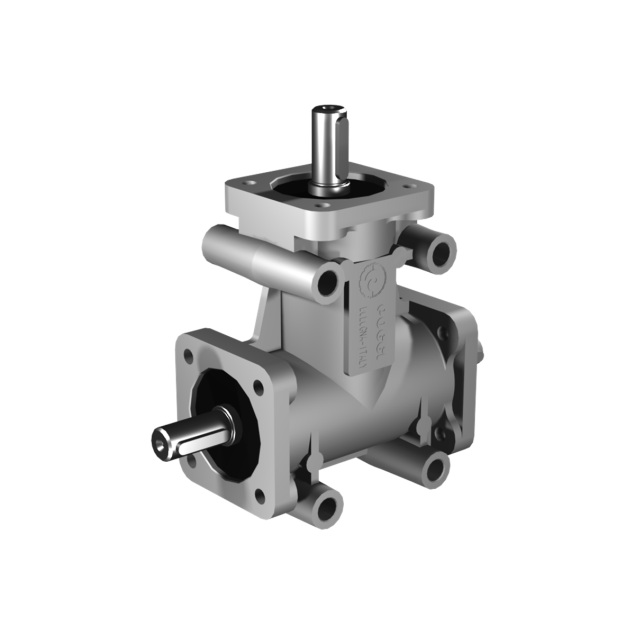

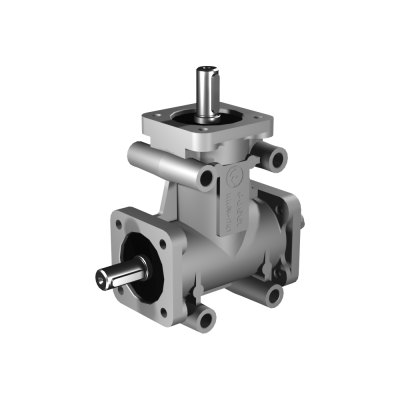

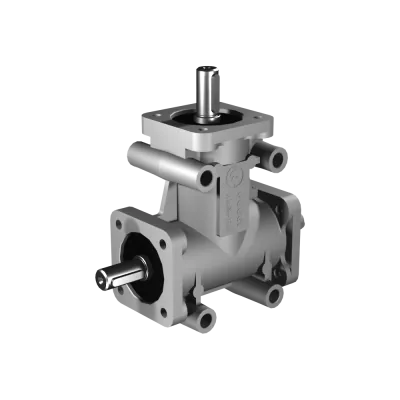

Poggi right angle gearbox 2008, R1:3, D1/2, Ø14h7, 3-way, Aluminium
HV3042008131The Poggi right angle gearbox 2008 offers a 3:1 gear ratio and a D1/2 configuration with three Ø14h7 shafts, making it ideal for synchronized multi-output applications. The gearbox supports up to 11.0 Nm @ 400 RPM and a maximum operating speed of 1000 RPM, delivering consistent torque in compact, low-speed systems. Constructed from lightweight aluminium, it offers corrosion resistance for use in various environments. Backlash is rated at 15'–30', supporting applications with moderate accuracy requirements.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2008 is ideal when you need a 3-way layout with a 1:3 gear ratio and Ø14h7 shaft interfaces (D1/2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2008
-
Gear ratio: 3:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø14h7
-
Max torque @ 400 RPM: 11.0 Nm
-
Max speed: 1000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
