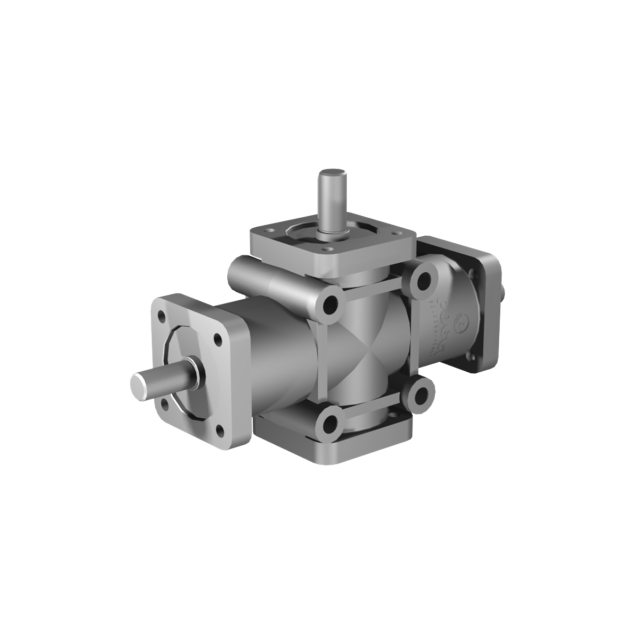

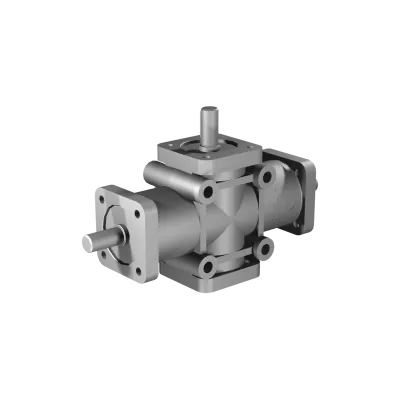

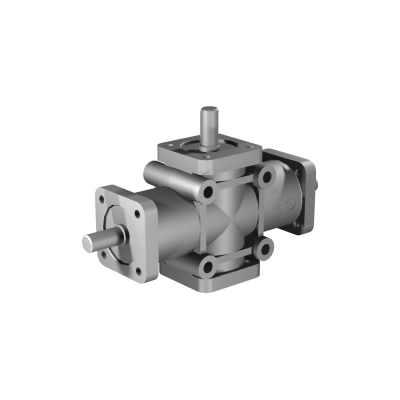

Poggi right angle gearbox 2007, R1:3, D1, Ø14h7, 3-way, Reduced backlash, Aluminium
HV3042007131SThe Poggi right angle gearbox 2007 with a 3:1 gear ratio and D1 configuration provides efficient speed reduction in compact automation setups. Designed with three Ø14h7 shafts, this unit distributes torque evenly while maintaining a compact footprint. Its aluminium housing ensures both durability and corrosion resistance. Rated for up to 9.0 Nm @ 400 RPM and a maximum speed of 1000 RPM, this gearbox is ideal for light-to-medium load applications where precise speed control is essential. No backlash data is specified.
Made to order
Expected shipment:
More Information
Description
The Poggi 2007 gearbox is designed for a 3-way layout with a 1:3 gear ratio and Ø14h7 shaft interfaces (D1). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2007
-
Gear ratio: 3:1
-
Shaft configuration: D1 (3 shafts)
-
Shaft diameter: Ø14h7
-
Max torque @ 400 RPM: 9.0 Nm
-
Max speed: 1000 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
