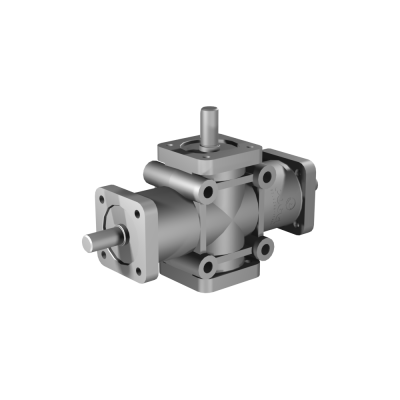

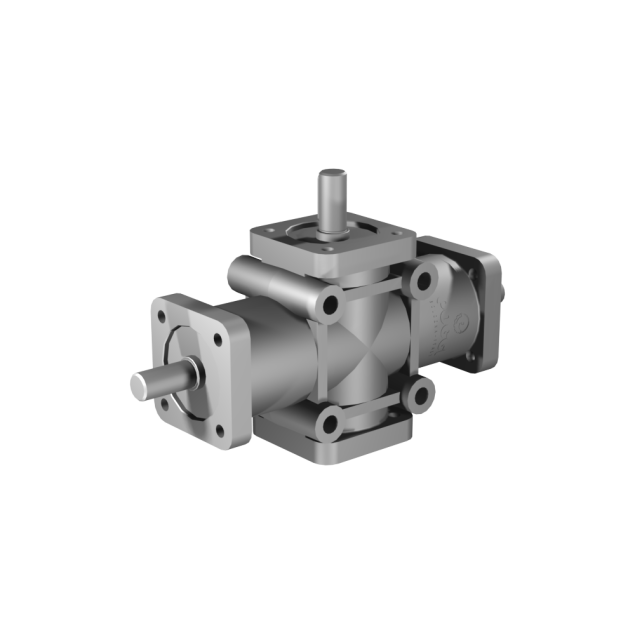

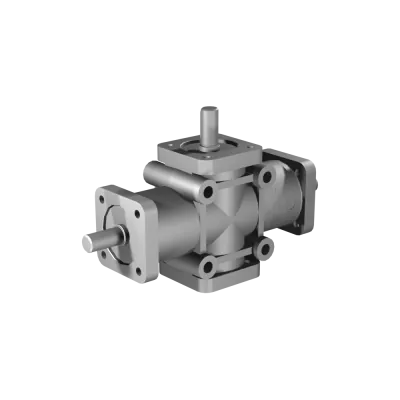

Poggi right angle gearbox 2007, R1:2, D1, Ø14h7, 3-way, Reduced backlash, Aluminium

HV3042007121S

The Poggi right angle gearbox 2007 features a 2:1 gear reduction and D1 configuration with three Ø14h7 shafts, making it ideal for compact applications requiring reduced output speed and distributed torque. With a maximum torque of 10.0 Nm @ 1400 RPM, this model is well-suited for synchronized or mirrored drives in OEM and automation systems. The aluminium housing ensures low weight and corrosion resistance, while the maximum speed of 1400 RPM supports stable, continuous operation. Backlash is not specified for this version.

€603.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Description

Engineered for performance, the Poggi 2007 delivers a 3-way layout with a 1:2 gear ratio and Ø14h7 shaft interfaces (D1). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.

Gear type: Right angle gearbox
Model: Poggi 2007
Gear ratio: 2:1
Shaft configuration: D1 (3 shafts)
Shaft diameter: Ø14h7
Max torque @ 1400 RPM: 10.0 Nm
Max speed: 1400 RPM
Housing material: Aluminium
Backlash: Not specified
Brand: Poggi (Italy)
