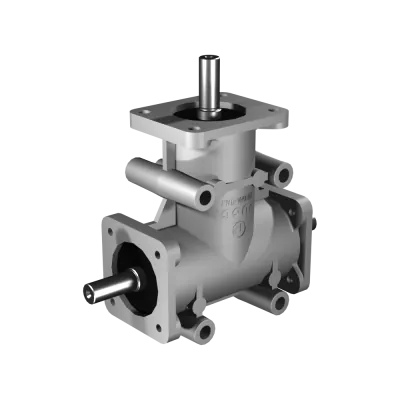

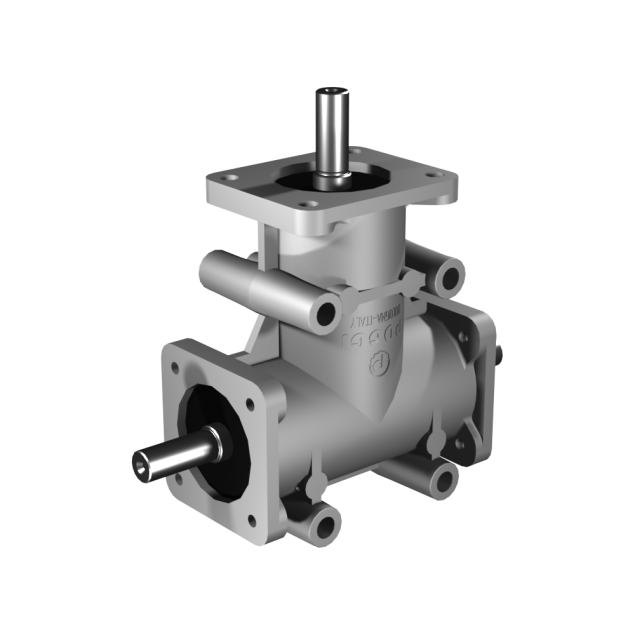

Poggi right angle gearbox 2002, R1:1, D1/2, Ø8h7, 3-way, Reduced backlash, Aluminium
HV3042002111SThe Poggi right angle gearbox 2002 with a 1:1 gear ratio and D1/2 configuration is designed for mirrored or synchronized three-shaft setups in compact systems. It features three Ø8h7 shafts and a lightweight aluminium housing, ideal for applications where space-saving and corrosion resistance are essential. Capable of delivering up to 3.0 Nm @ 1400 RPM, with a maximum operating speed of 3000 RPM, this model is well-suited for OEM machinery and automation systems where backlash control is not a strict requirement.
Made to order
Expected shipment:
More Information
Description
Engineered for performance, the Poggi 2002 delivers a 3-way layout with a 1:1 gear ratio and Ø8h7 shaft interfaces (D1/2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2002
-
Gear ratio: 1:1
-
Shaft configuration: D1/2 (3 shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 3.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
