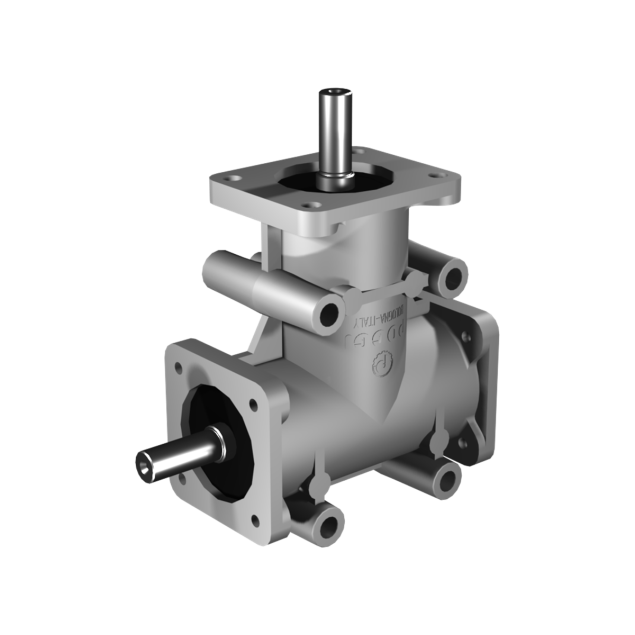

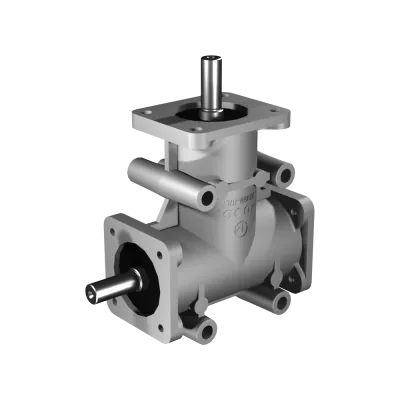

Poggi right angle gearbox 2000, R1:2, D2, Ø8h7, 2-way, Aluminium
HV3042000122The Poggi right angle gearbox 2000 with a 2:1 gear ratio and D2 configuration is designed for mirrored or parallel dual-output applications. Built with two Ø8h7 shafts and a lightweight aluminium housing, this gearbox is ideal for compact assemblies where speed reduction and synchronized output are required. It delivers up to 2.2 Nm @ 1400 RPM, supports speeds up to 1400 RPM, and maintains a backlash specification of 15'–30', making it suitable for light-duty automation and OEM systems.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2000 is ideal when you need a 2-way layout with a 1:2 gear ratio and Ø8h7 shaft interfaces (D2). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2000
-
Gear ratio: 2:1
-
Shaft configuration: D2 (2 output shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 2.2 Nm
-
Max speed: 1400 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
