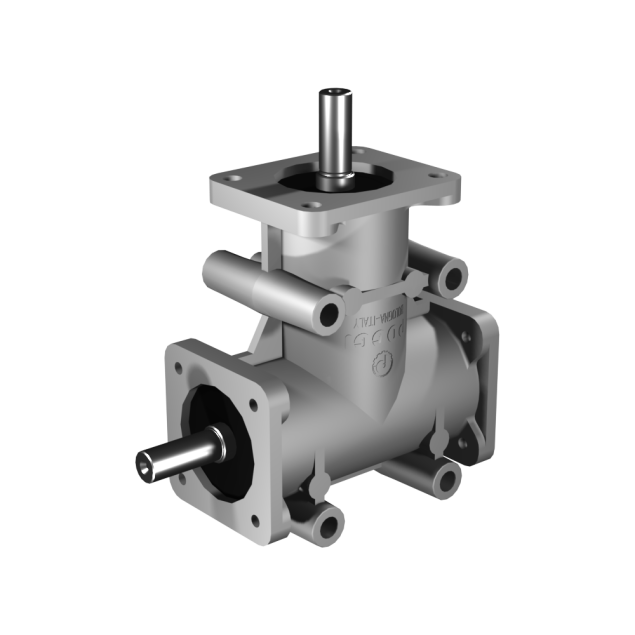

Poggi right angle gearbox 2000, R1:1, D2, Ø8h7, 2-way, Reduced backlash, Aluminium
HV3042000112SThe Poggi right angle gearbox 2000 with a 1:1 gear ratio and D2 configuration is designed for dual-output applications requiring compact, lightweight, and corrosion-resistant performance. It features two Ø8h7 output shafts and a precision-engineered aluminium housing, making it suitable for mirrored or synchronized power transmission. Delivering up to 3.0 Nm @ 1400 RPM, and operating at speeds up to 3000 RPM, this gearbox is ideal for integration into OEM systems or light-duty automation, where backlash tolerance is not specified.
Made to order
Expected shipment:
More Information
Description
Poggi’s 2000 is ideal when you need a 2-way layout with a 1:1 gear ratio and Ø8h7 shaft interfaces (D2). Featuring a compact and robust aluminium casing that balances strength, low weight, and heat efficiency. This version is optimized with reduced backlash gearing, minimizing angular deviation and ensuring excellent positional accuracy in motion systems. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2000
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 output shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 3.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Not specified
-
Brand: Poggi (Italy)
