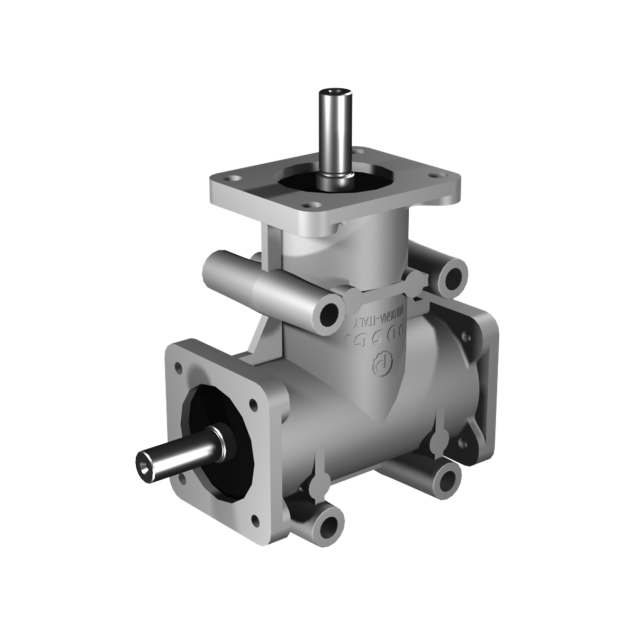

Poggi right angle gearbox 2000, R1:1, D2, Ø8h7, 2-way, Aluminium
HV3042000112The Poggi right angle gearbox 2000 is built in a D2 configuration with two Ø8h7 shafts and a 1:1 gear ratio, supporting synchronized motion between two axes. Designed for applications with lower torque demands, this gearbox delivers 3.0 Nm @ 1400 RPM and supports speeds up to 3000 RPM. Its aluminium housing ensures low weight and excellent heat dissipation, making it ideal for compact automation systems or test rigs. A defined backlash of 15'–30' ensures precision in cyclic and repetitive operations.
Made to order
Expected shipment:
More Information
Description
Model 2000 from Poggi offers a 2-way layout with a 1:1 gear ratio and Ø8h7 shaft interfaces (D2). Housed in corrosion-resistant aluminium that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2000
-
Gear ratio: 1:1
-
Shaft configuration: D2 (2 shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 3.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
Downloads
