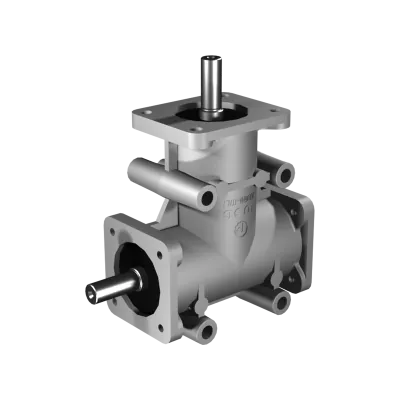

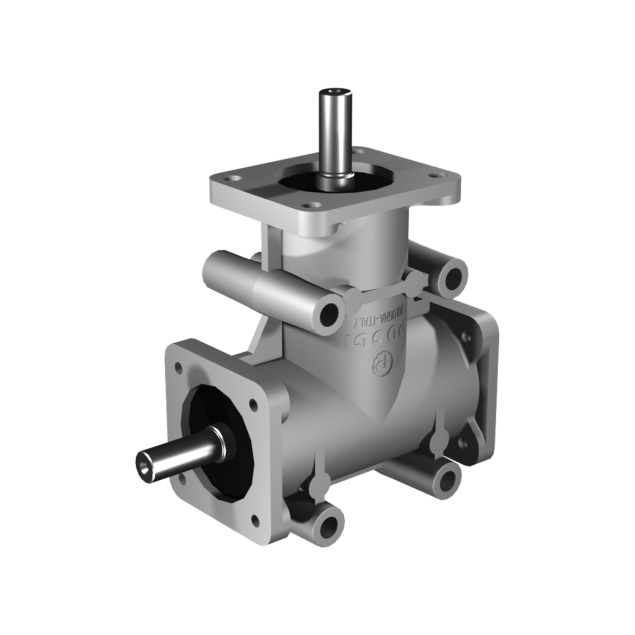

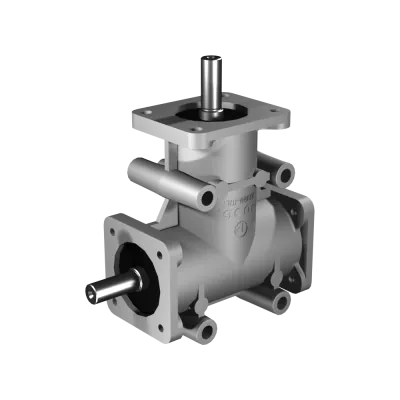

Poggi right angle gearbox 2000, R1:1, D1, Ø8h7, 2-way, Aluminium
HV3042000111The Poggi right angle gearbox 2000 is engineered for compact and lightweight applications requiring reliable 90° torque transfer. With a 1:1 gear ratio, D1 configuration, and two Ø8h7 shafts, it supports simple and efficient power transmission in confined mechanical assemblies. The aluminium housing ensures corrosion resistance and low mass, while the gearbox delivers up to 3.0 Nm @ 1400 RPM, supports speeds up to 3000 RPM, and offers a backlash range of 15'–30', making it well-suited for low-load automation systems and OEM machinery.
Made to order
Expected shipment:
More Information
Description
Model 2000 from Poggi offers a 2-way layout with a 1:1 gear ratio and Ø8h7 shaft interfaces (D1). Built with a lightweight aluminium housing that balances strength, low weight, and heat efficiency. Internally equipped with spiral bevel gears, it ensures smooth, low-noise, and efficient torque transfer. Fully sealed and lubricated for life, this gearbox delivers long-lasting, maintenance-free performance in high-cycle production environments.
-
Gear type: Right angle gearbox
-
Model: Poggi 2000
-
Gear ratio: 1:1
-
Shaft configuration: D1 (2 shafts)
-
Shaft diameter: Ø8h7
-
Max torque @ 1400 RPM: 3.0 Nm
-
Max speed: 3000 RPM
-
Housing material: Aluminium
-
Backlash: Normal 15'–30'
-
Brand: Poggi (Italy)
