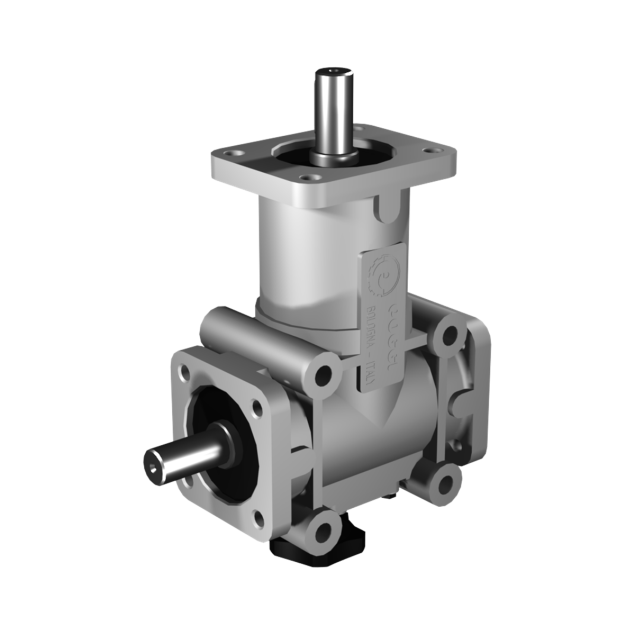

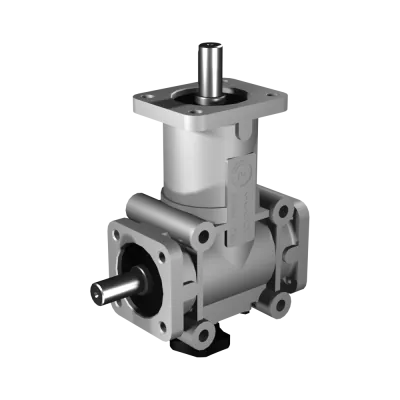

Poggi reversing gearbox 2019, R1:1, D1/2, Ø19h7, 2-way, Aluminium
HV3042019000The Poggi reversing gearbox 2019, R1:1, D1/2, Ø19h7, 2-way, Aluminium is designed for directional torque transfer in compact mechanical setups where two-way motion is required. With a 1:1 gear ratio, this model provides consistent speed and torque on both output shafts, making it ideal for mirrored actuation, synchronized reversing mechanisms, or manual direction change systems.
The two Ø19h7 precision shafts in D1/2 configuration allow torque output in opposite directions at 90° angles. The aluminium housing ensures corrosion resistance and minimal weight, suitable for dynamic or space-limited installations. With a nominal torque rating of 35 Nm at 1400 RPM, it performs reliably under standard industrial load profiles.
Made to order
Expected shipment:
More Information
Description
Poggi Reversing Gearbox – Model 2019, R1:1, Ø19h7, 2-Way Output, D1/2, Aluminium
The Poggi 2019 reversing gearbox is a precision-engineered solution for compact mechanical systems that require efficient directional reversal of rotational motion. With a 1:1 gear ratio and Ø19 mm h7-tolerance shafts, it enables synchronized bidirectional torque transfer without altering speed.
The D1/2 configuration supports a flexible layout with an input and output on opposite axes, allowing the unit to adapt easily into existing mechanical assemblies. Its aluminium housing provides a lightweight yet durable enclosure that ensures high thermal dissipation and resistance to corrosion — ideal for mobile, modular, or space-constrained equipment.
Internally equipped with spiral bevel gears, the gearbox ensures low-noise operation, high transmission efficiency, and long service life even under continuous-duty conditions. The unit is pre-lubricated and sealed for life, making it a maintenance-free component well-suited to modern industrial environments.
From packaging lines and material handling to automation frameworks, the Poggi 2019 reversing gearbox delivers reliable performance, mechanical flexibility, and long-term value.
-
Gear ratio: 1:1 (R1:1)
Maintains input torque and speed — suitable for direction reversal without speed loss. -
Configuration: D1/2, 2-shaft layout
Opposite output shafts allow reversing or parallel-driven motion. -
Shaft diameter: Ø19h7
Precision machining ensures low backlash and smooth rotation. -
Housing: Aluminium
Lightweight and corrosion-resistant for long-term use in machinery and automation. -
Nominal torque: 35 Nm @ 1400 RPM
-
Maximum speed: 1400 RPM
-
Backlash: 15–30′
