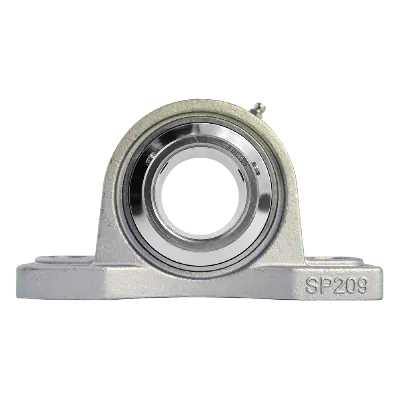

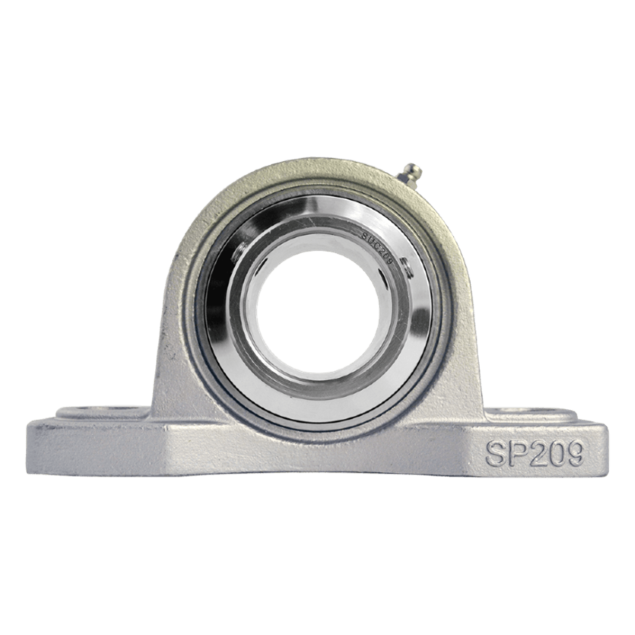

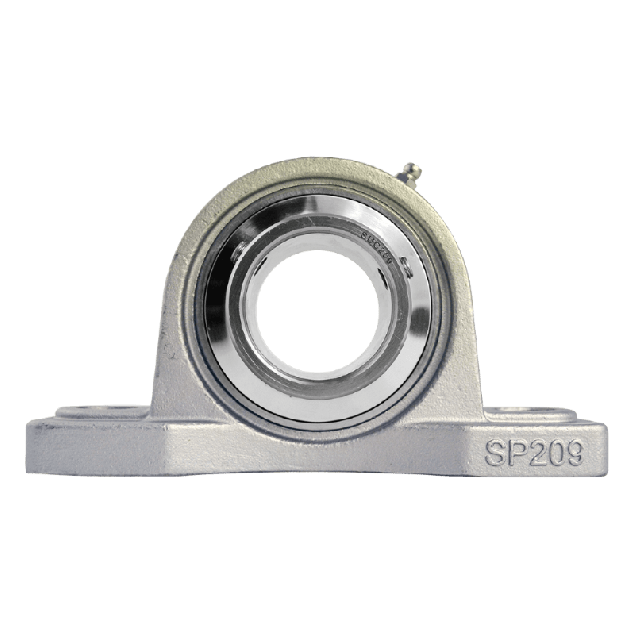

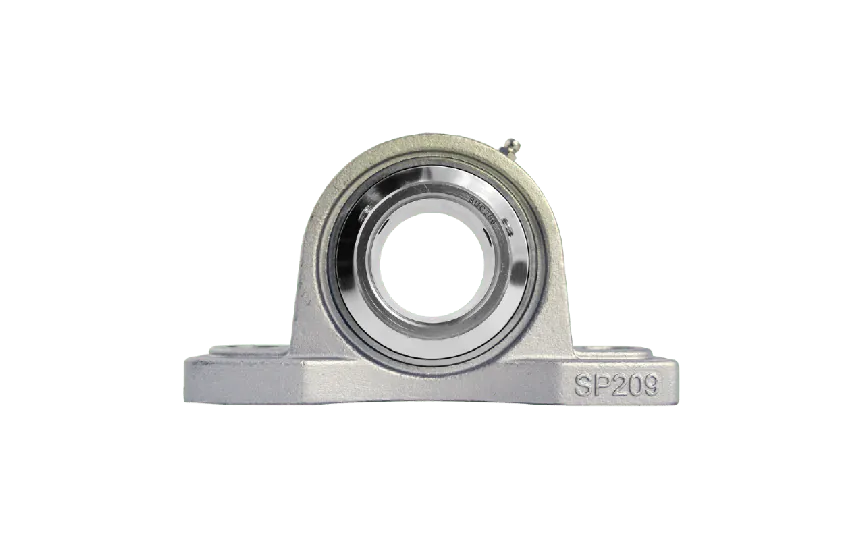

Pillow block bearing SP Ø45, stainless steel
SUCP209SThe SP Ø45 stainless steel pillow block bearing, is a durable and reliable solution designed for demanding environments, particularly in the food industry. With its hygienic design and low maintenance requirements, this bearing unit ensures optimal performance while meeting strict industry standards.
Specifications
Product description
Downloads
€96.51
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M16
Grease nipple
Straight
Hole distance (mm)
146
Shaft size (mm)
Ø45
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SP
Mounting
Set screw
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key features:
- Sealings NBR: The SP bearing is equipped with sealings made of NBR (Nitrile Butadiene Rubber).
- Set screw lock: This bearing unit is designed with a secure set screw lock mechanism.
- Maintenance-free (except regular greasing): The SP stainless steel pillow block bearing requires minimal maintenance, offering hassle-free operation. Regular greasing is recommended as needed to ensure smooth performance and extend the lifespan of the bearing.
- Wide operating temperature range: From -20° C to +120° C.
- No surface coating required: The stainless steel construction of the SP pillow block bearing eliminates the need for additional surface coatings.
Materials:
- Stainless steel housings AISI 304: The bearing unit features a robust housing made of AISI 304 stainless steel.

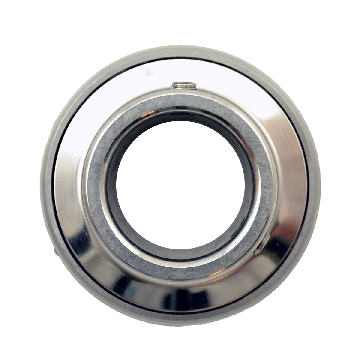

- SUC stainless steel bearings AISI 440C: The SP pillow block bearing incorporates SUC stainless steel bearings made of AISI 440C.
- Stainless steel grease nipple: The stainless steel grease nipple allows for convenient and efficient greasing.
