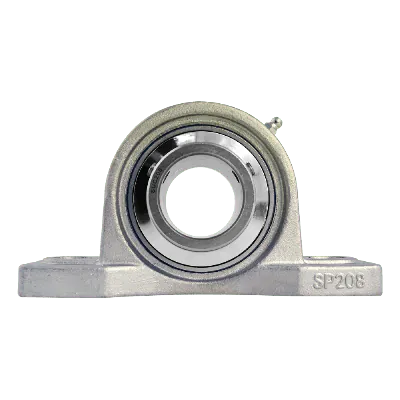

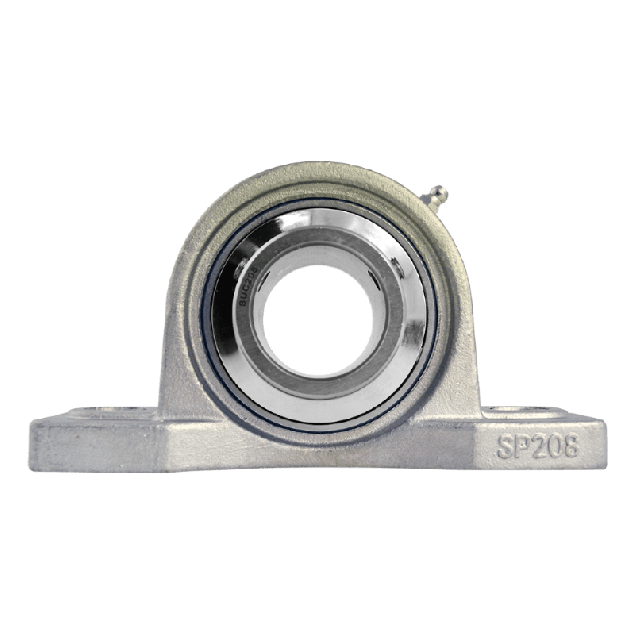

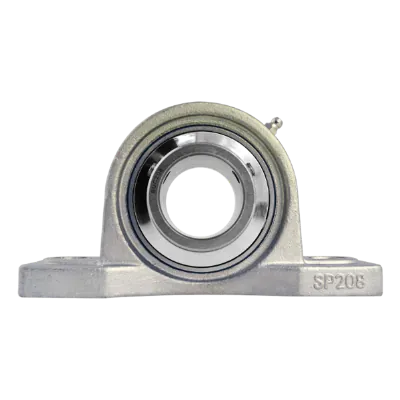

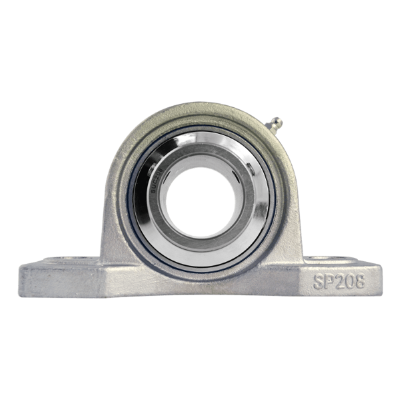

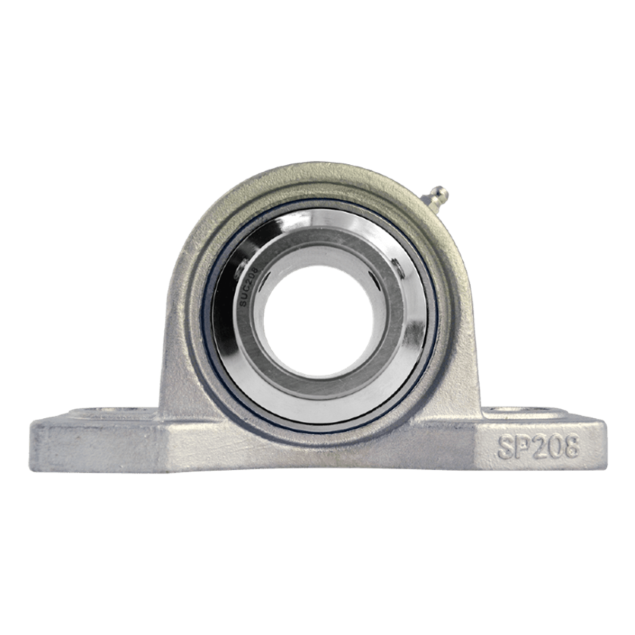

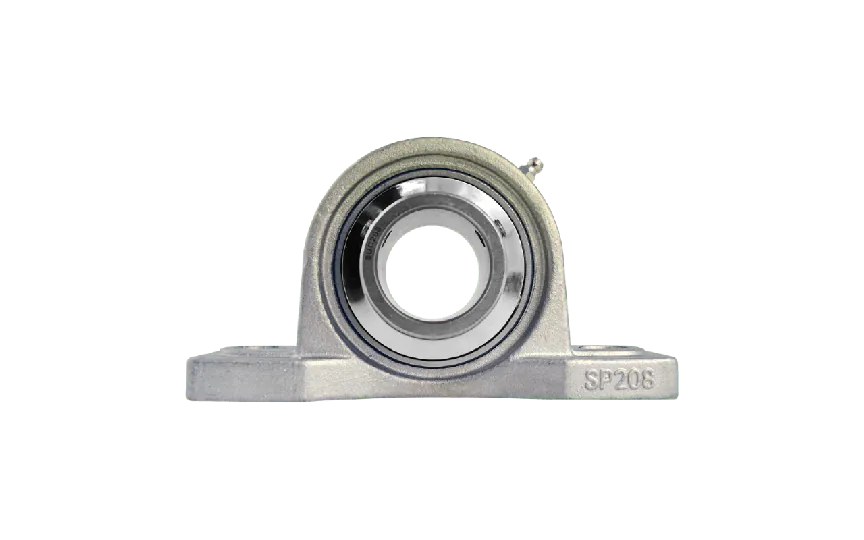

Pillow block bearing SUCP208S, Ø40, with feet, stainless steel
SUCP208SThe SP Ø40 stainless steel pillow block bearing, is designed for performance in demanding environments such as the food industry. Crafted with high-quality materials and boasting a hygienic design, this bearing unit offers reliability and ease of maintenance.
Specifications
Product description
Downloads
€85.70
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
Grease nipple
Straight

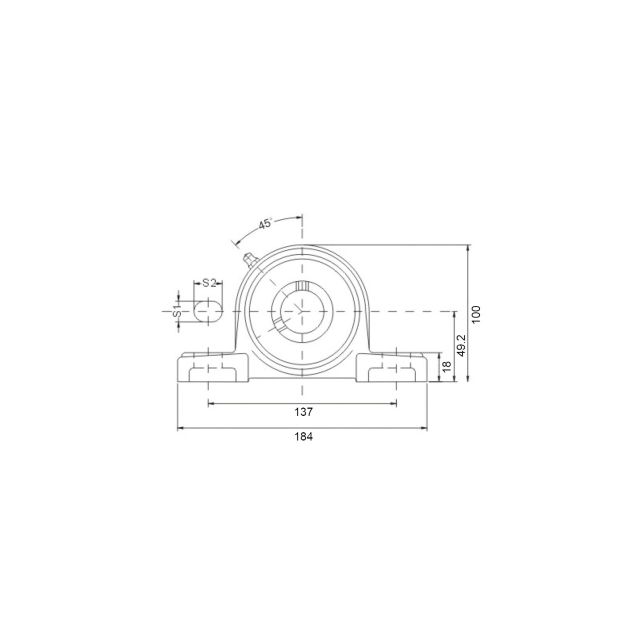

Hole distance (mm)
137
Shaft size (mm)
Ø40
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SP
Mounting
Set screw
Housing type
2-bolt pillow block bearing
House material
Stainless steel
HS-Code
84832000.000000
Description
Key features:
- NBR sealings ensure optimum protection against contaminants and maintain the integrity of the bearing.
- The set screw lock mechanism provides secure attachment, preventing any unwanted slippage or misalignment.
- Maintenance-free operation with the exception of regular greasing when required.
- Operating temperature range from -20° C to +120° C.
- No surface coating is needed, simplifying installation and reducing the risk of chemical interactions.
Materials:
- Stainless steel housings (AISI 304) offer durability and corrosion resistance.
- SUC stainless steel bearings (AISI 440C) provide load-bearing capabilities and extended service life.
- Stainless steel grease nipple allows for easy and precise lubrication.
