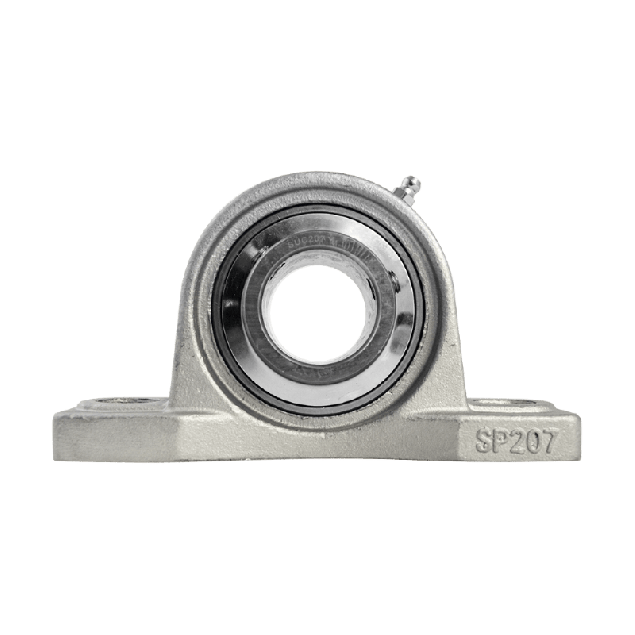

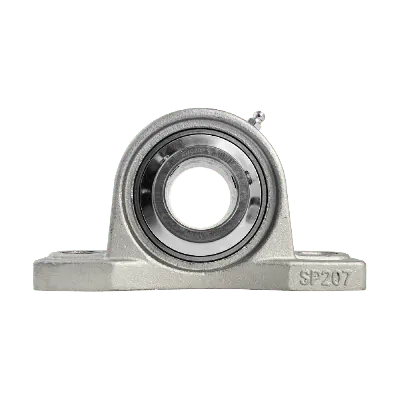

Pillow block bearing SP Ø35, stainless steel
SUCP207SThe SP Ø35 stainless steel pillow block bearing, is a reliable and high-performance bearing unit designed for the food industry and other demanding environments. With its hygienic design and minimal maintenance requirements, this stainless steel bearing is the ideal choice for applications where cleanliness and durability are paramount.
Specifications
Product description
Downloads
€71.05
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M14
Grease nipple
Straight
Hole distance (mm)
127
Shaft size (mm)
Ø35
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SP
Mounting
Set screw
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key features:
- Sealed for protection: Equipped with NBR sealings, the pillow block bearing bearing provides protection against contamination.
- Secure locking mechanism: With a set screw lock, this bearing unit offers a secure and reliable attachment.
- Maintenance-free operation: Apart from periodic greasing, this bearing requires minimal maintenance.
- Wide operating temperature range: The bearing is built to withstand temperatures ranging from -20°C to +120°C.
- No surface coating required: The stainless steel construction eliminates the need for surface coating, making this bearing unit a cost-effective and hassle-free solution.
Materials:
- Stainless steel housings: The housing of the bearing is crafted from AISI 304 stainless steel.
- SUC stainless steel bearings: Featuring AISI 440C stainless steel bearings.
- Stainless steel grease nipple: The inclusion of a stainless steel grease nipple allows for easy and efficient greasing.
