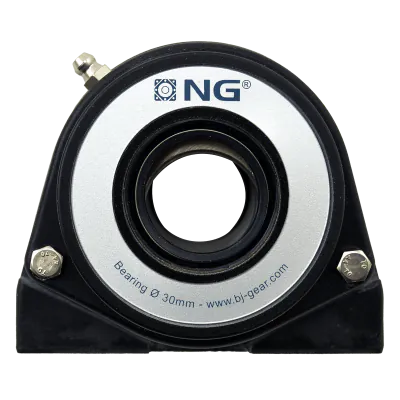

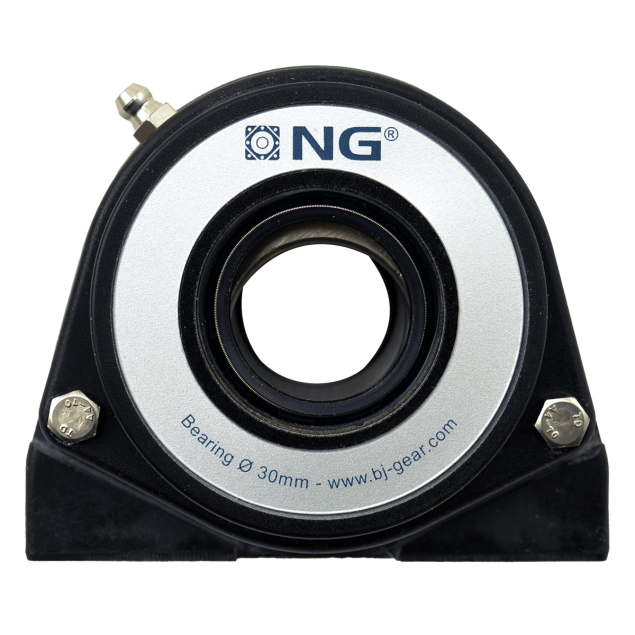

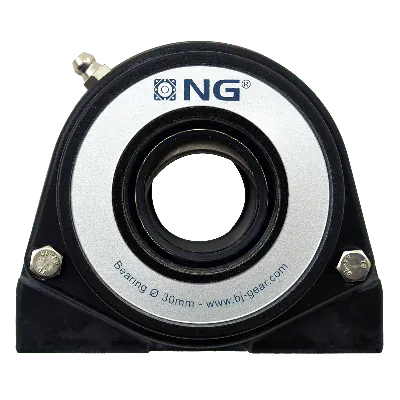

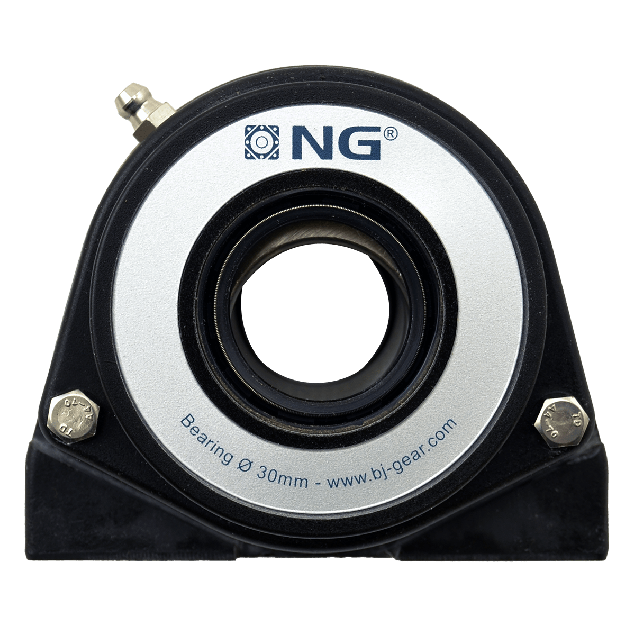

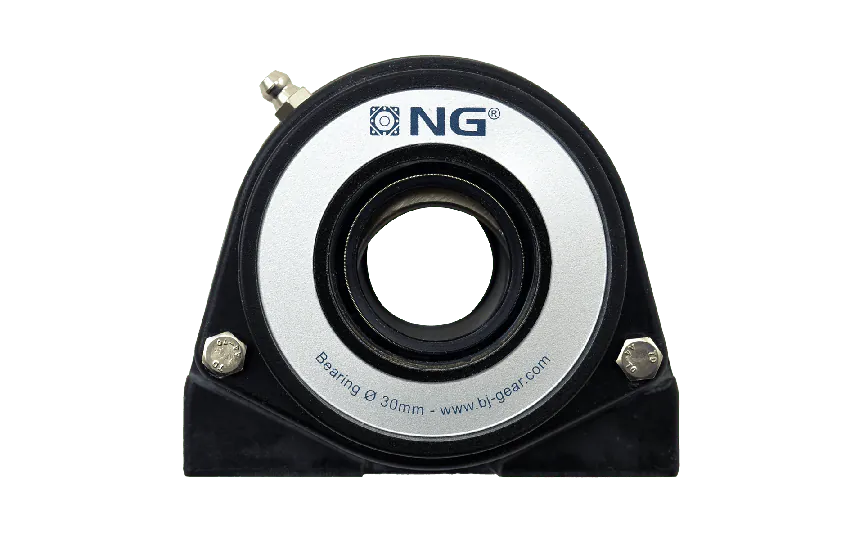

NG waterproof pillow block bearing with thread S2 Ø30, 2-bolt, open cover
NG30S21The NG S2 Ø30 waterproof pillow block bearings with thread and open cover, is a reliable and efficient solution for a wide range of industrial applications. These compact flange housings are designed to offer performance, ease of maintenance, and optimal protection against water ingress.
Specifications
Product description
Guide
Downloads
€71.00
Made to order
Expected shipment: 03-04-2025
Accessories
More Information
Bolt size
M10
Grease nipple
Straight
Hole distance (mm)
76.2
Shaft size (mm)
Ø30
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
S2
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Polyurethane
Color
Black
IP classification
IP 66/67
Description
Key features:
- Compact flange housing: Designed with rounded corners and smooth surfaces for easy cleaning and maintenance.
- Spherical PE lifetime lubricated ball bearing: Ensures smooth and efficient rotation with an eccentric locking collar for secure shaft attachment.
- IP66/67 rated: Boasts water and dust resistance, making it ideal for challenging environments.
- Maintenance-free: The bearing requires no regular maintenance.
- Mountable in all angles: The versatile design allows for mounting in any orientation, adapting to various installation requirements.
Materials:
- Stainless steel grease nipple: Facilitates optimal food-grade grease filling, minimizing condensation in the bearing housing.
- Sturdy PUR flange housing: Made of Polyurethane (PUR)
Guide
In this video as we take you through the journey of making our NG bearings. Watch how the product is made from cast to assembly of the final product.
Play video
Downloads
