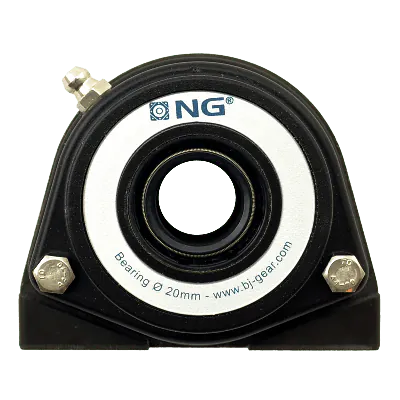

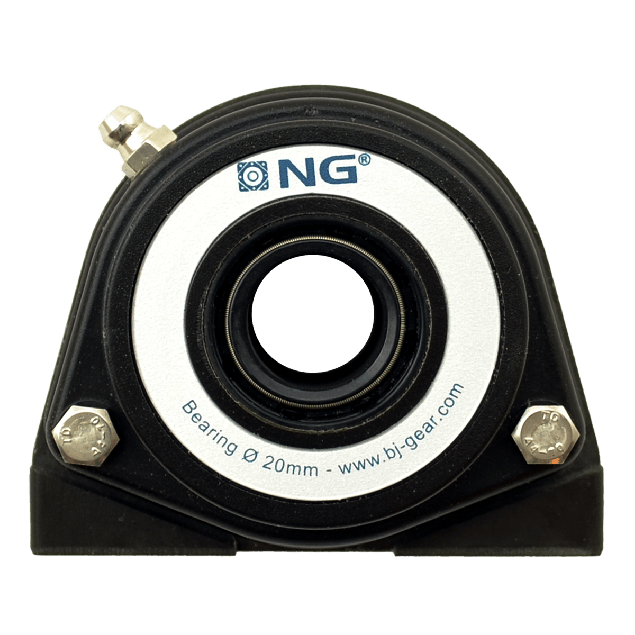

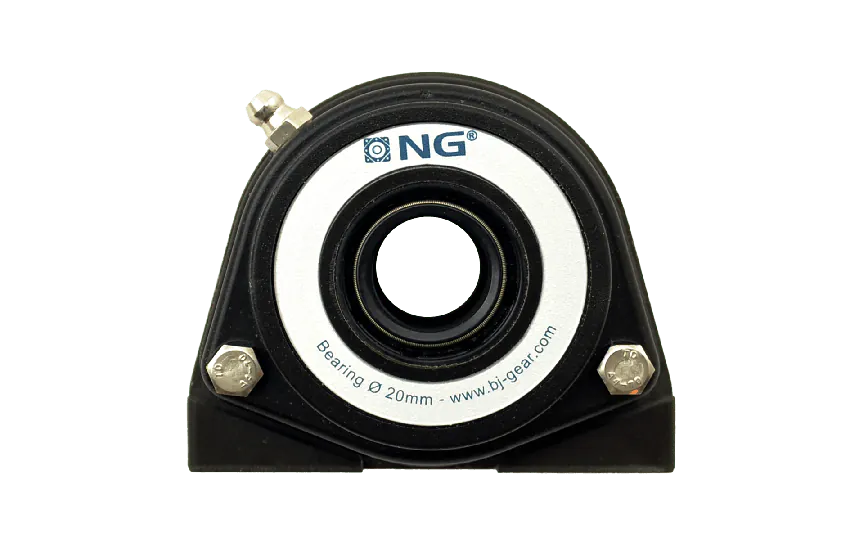

NG waterproof pillow block bearing with thread S2 Ø20, 2-bolt, open cover
NG20S21The NG S2 Ø20 waterproof pillow block bearings with thread and open cover, is designed to provide performance and durability in demanding industrial applications. This compact and versatile flange housing offers a range of features and high-quality materials that ensure reliable operation and easy maintenance.
Specifications
Product description
Guide
Downloads
€63.40
Made to order
Expected shipment: 20-11-2024
More Information
Bolt size
M8
Grease nipple
Straight
Hole distance (mm)
50.8
Shaft size (mm)
Ø20
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
S2
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Polyurethane
Color
Black
IP classification
IP 66/67
Description
Key features:
- Compact and easy-to-clean flange housing with rounded corners and smooth surfaces.
- Spherical PE lifetime lubricated ball bearing with an eccentric locking collar for secure shaft attachment.
- IP66/67 rating guarantees superior waterproofing, even under direct hosing.
- The housing can be mounted in different angles, providing flexibility in installation.
- Four mounting holes placed identically to other cast iron flange housings on the market, allowing for seamless integration.
Materials:
- Stainless steel grease nipple enables optimal food-grade grease filling, minimizing condensation in the bearing housing.
- Flange housing made of PUR (polyurethane).
Guide
Play video
