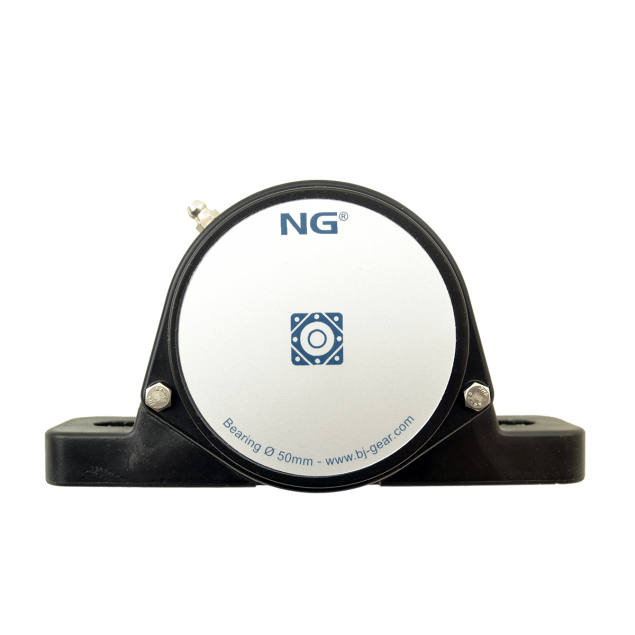

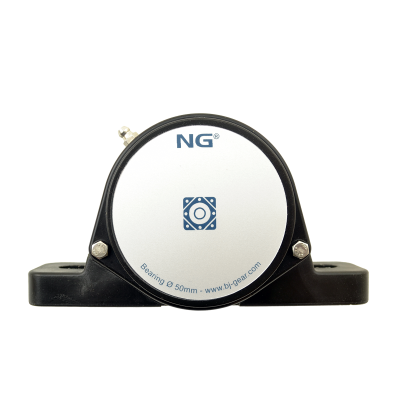

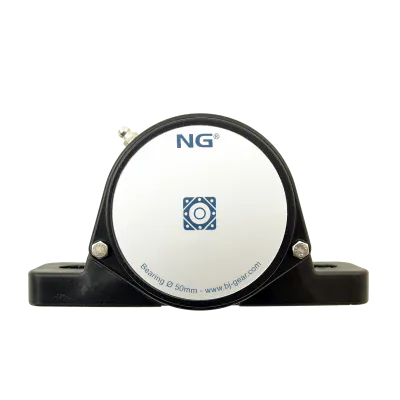

NG waterproof pillow block bearing SF2 Ø50, 2-bolt, closed cover
NG50SF20The NG50SF20 is a high-performance pillow block bearing designed for demanding environments requiring excellent hygiene and corrosion resistance. Featuring a 2-bolt mounting base and a closed end cover, it protects the bearing insert from dirt and contaminants while providing secure and stable shaft support.
The housing is made of polyurethane (PUR), offering superior resistance to chemicals, cleaning agents, and mechanical stress. The insert bearing is built from stainless steel, ensuring long service life under washdown conditions. With an IP66 protection rating, this pillow block is fully waterproof and suited for wet process areas and food industry environments.
Made to order
Expected shipment:
Accessories
More Information
Description
Key features:
- Compact and easy-to-clean flange housing with rounded corners and smooth surfaces.
- Spherical PE lifetime lubricated ball bearing with an eccentric locking collar for reliable operation.
- IP66/67 rated design provides excellent protection against dust and water ingress, even under direct hosing.
- Oil seal ring with a stainless steel spring prevents water penetration, maintaining the integrity of the housing.
- Suitable for production equipment in the food industry, meeting stringent hygiene standards.
- Maintenance-free ball bearing, eliminating the need for regular servicing.
- PUR housing can be mounted in all angles.
Materials:
- Stainless steel grease nipple allows optimal food-grade grease filling, preventing condensation in the bearing housing.
- Flange housing made of durable and impact-strengthened PUR (polyurethane).
