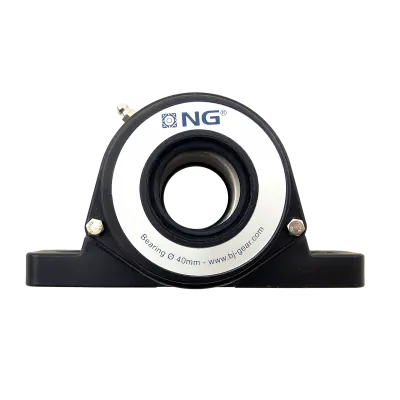

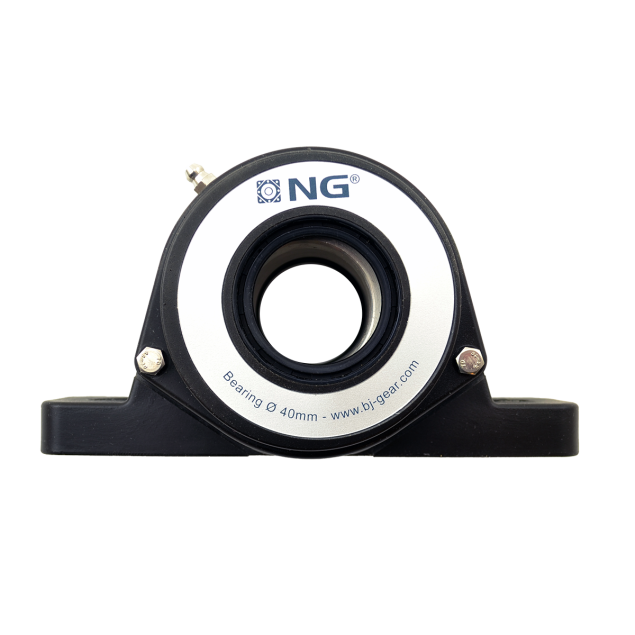

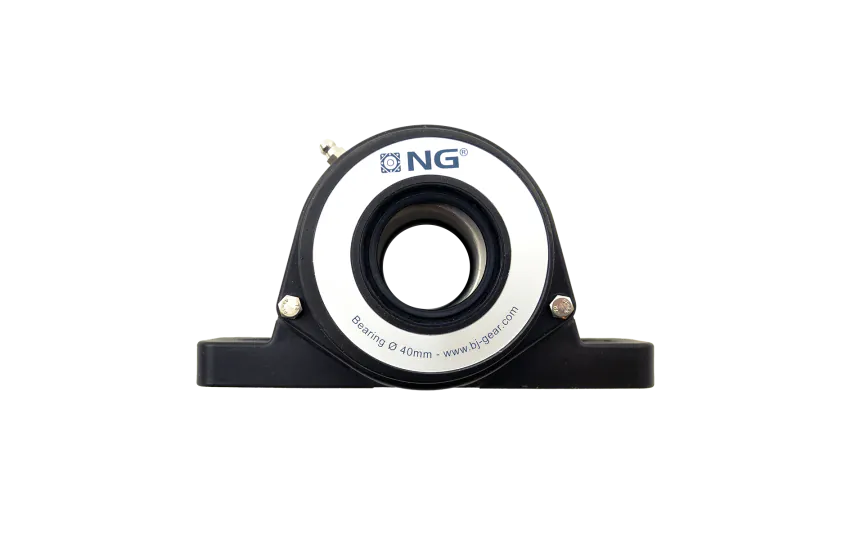

NG waterproof pillow block bearing SF2 Ø40, 2-bolt, open cover
NG40SF21The NG SF2 Ø40 pillow block bearing unit with open cover, is a high-quality bearing unit designed to provide performance and durability, making it an ideal choice for a wide range of applications in the food industry and beyond. With its compact flange housing and rounded corners, the SF2 Ø40 offers easy cleaning and maintenance, ensuring a hygienic environment
Specifications
Product description
Guide
Downloads
€86.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
Grease nipple
Straight
Hole distance (mm)
137
Shaft size (mm)
Ø40
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF2
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Polyurethane
IP classification
IP 66/67
Description
Key features:
- IP66/67 rated: The unit is built to withstand tough operating conditions, with an IP66/67 rating for protection against dust and water ingress.
- Stainless steel spring oil seals: The oil seals on the shaft passage feature a stainless steel spring, effectively preventing water penetration and ensuring optimal performance in wet environments.
- Standard measurements: The SF2 is compatible with other flange bearings available on the market, making it a seamless replacement option.
Materials:
- Stainless steel grease nipple: The bearing unit comes with a stainless steel grease nipple, allowing for easy and efficient food-grade grease filling while preventing condensation within the housing.
- Sturdy PUR flange housing: The SF2 features a flange housing made of durable PUR (polyurethane).
Guide
In this video as we take you through the journey of making our NG bearings. Watch how the product is made from cast to assembly of the final product.
