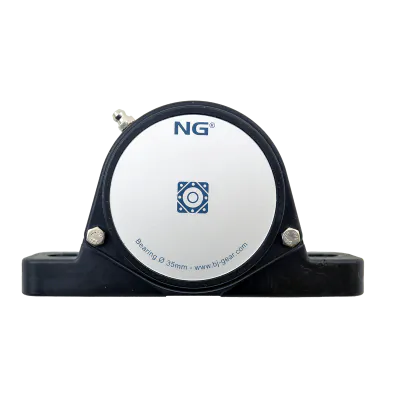

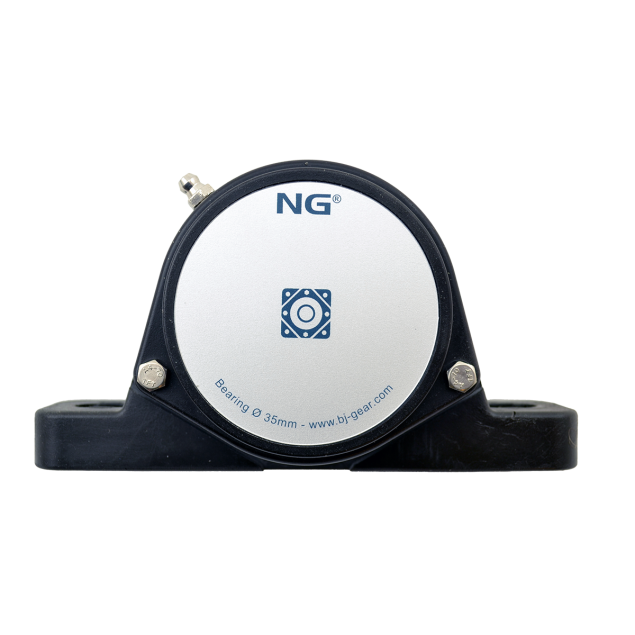

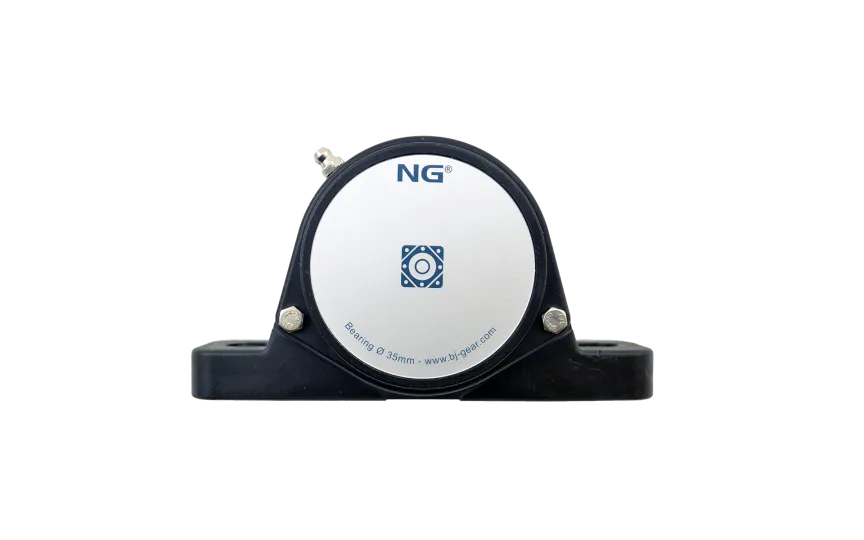

NG waterproof pillow block bearing SF2 Ø35, 2-bolt, closed cover
NG35SF20The NG SF2 Ø35 pillow block bearing unit complete with closed cover, is a solution for compact and reliable flange housing in the food industry. With its features and high-quality materials, this bearing unit is designed to deliver performance and durability
Specifications
Product description
Guide
Downloads
€79.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
Grease nipple
Straight
Hole distance (mm)
127
Shaft size (mm)
Ø35
Cover
Closed
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF2
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Polyurethane
IP classification
IP 66/67
Description
Key features:
- Compact and easy-to-clean flange housing with rounded corners and smooth surfaces.
- IP66/67 rating ensures excellent protection against water penetration, even during direct hosing.
- Oil seals equipped with a stainless steel spring on the shaft passage for enhanced sealing.
- Standard measurements compatible with other flange bearings available in the market.
- Maintenance-free ball bearing, eliminating the need for regular upkeep.
Materials:
- Stainless steel grease nipple enables optimal food-grade grease filling, preventing condensation in the bearing housing.
- Flange housing constructed from extremely sturdy PUR (polyurethane).
Guide
In this video as we take you through the journey of making our NG bearings. Watch how the product is made from cast to assembly of the final product.
Play video
Downloads
