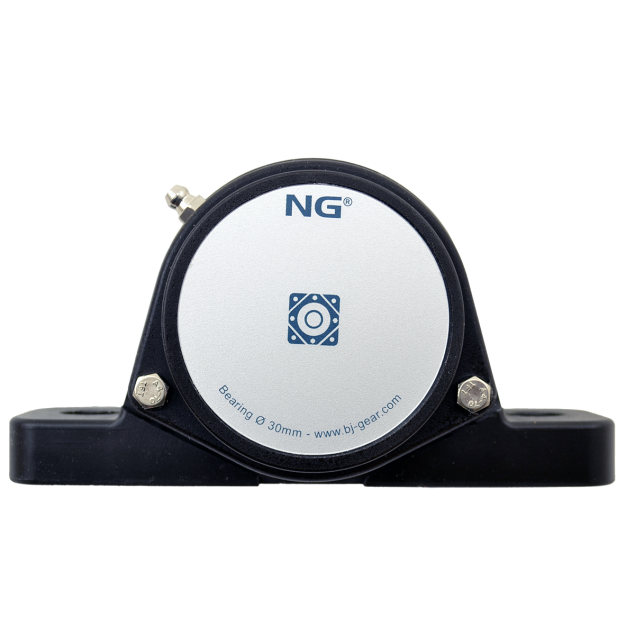

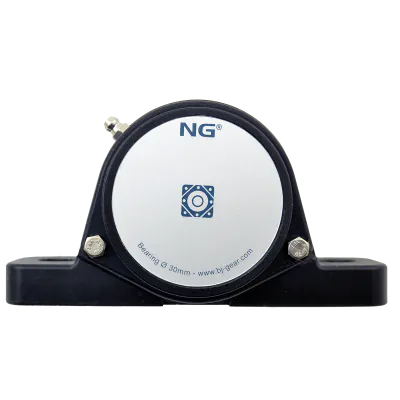

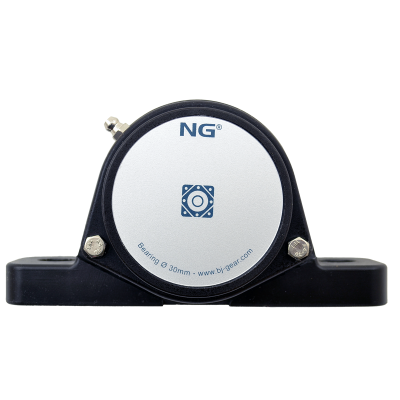

NG waterproof pillow block bearing SF2 Ø30, 2-bolt, closed cover

NG30SF20

NG SF2 Ø30 pillow block bearing with a closed cover, is a reliable and durable solution for your industrial equipment needs. This compact and easy-to-clean flange housing, is designed to deliver performance in the food industry. With its rounded corners and smooth surfaces, maintaining cleanliness and hygiene is easy

Specifications

Product description

Guide

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

Accessories

Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø30
Mounting Eccentric

NG waterproof insert bearing PE Ø30, stainless steel KI803050

€35.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

121

Shaft size (mm)

Ø30

Cover

Closed

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

SF2

Mounting

Eccentric

Housing type

2-bolt pillow block bearing

House material

Polyurethane

IP classification

IP 66/67

Description

Key features:

IP66/67 Rated: The SF2 is built to withstand demanding environments, offering excellent protection against dust and water ingress.
Stainless steel spring oil seals: The oil seal ring, equipped with a stainless steel spring, guarantees a watertight seal on the shaft passage. Even under direct hosing, water penetration is effectively prevented.
Same measurements as other flange bearings: The SF2 follows standard sizing, allowing for seamless integration with existing flange bearings in the market.
Maintenance-free ball bearing: No maintenance is required for the ball bearing.

Materials:

Stainless steel grease nipple: The inclusion of a stainless steel grease nipple enables optimal food-grade grease filling, preventing condensation within the bearing housing.
Sturdy PUR flange housing: The flange housing is constructed from durable and impact-strengthened PUR (polyurethane) material.
