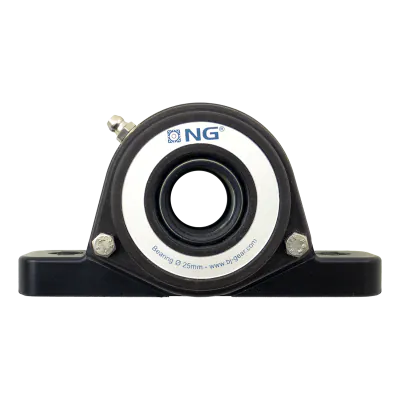

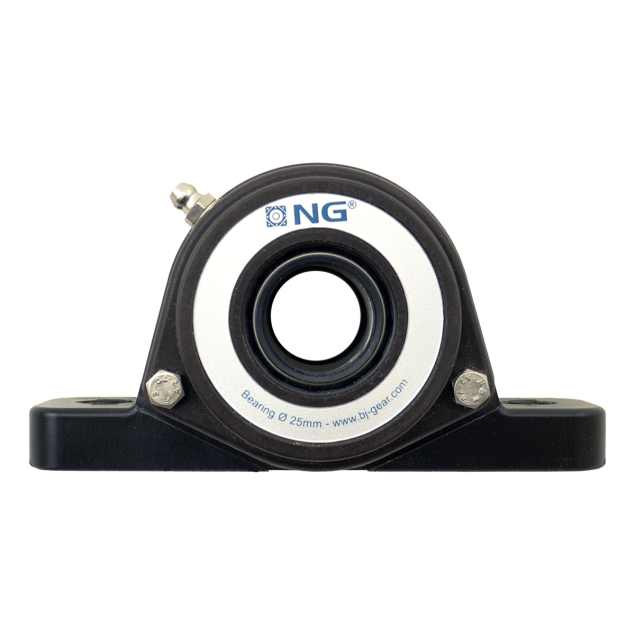

NG waterproof pillow block bearing SF2 Ø25, 2-bolt, open cover
NG25SF21The NG SF2 Ø25 pillow block bearing with open cover. This bearing is designed to meet the demanding requirements of the food industry, offering reliability, durability, and easy maintenance. With its compact and user-friendly design, it ensures smooth operations and minimal downtime in production equipment
Specifications
Product description
Guide
Downloads
€68.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
Grease nipple
Straight
Hole distance (mm)
105
Shaft size (mm)
Ø25
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SF2
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Polyurethane
IP classification
IP 66/67
HS-Code
84832000.000000
Description
Key features:
- IP66/67 rating: The NG SF2 Ø25 bearing is designed to withstand challenging environments, offering protection against dust and water ingress.
- Stainless steel spring oil seals: Equipped with oil seals featuring a stainless steel spring on the shaft passage, the unit effectively prevents water penetration, even when exposed to direct hosing.
- Standard measurements: The unit's measurements match those of other flange bearings on the market, making it a versatile choice for various applications.
Materials:
- Stainless steel grease nipple: The inclusion of a stainless steel grease nipple allows for optimal food-grade grease filling.
- Sturdy PUR flange housing: The flange housing is constructed from impact-strengthened PUR (polyurethane).
Guide
In this video as we take you through the journey of making our NG bearings. Watch how the product is made from cast to assembly of the final product.
