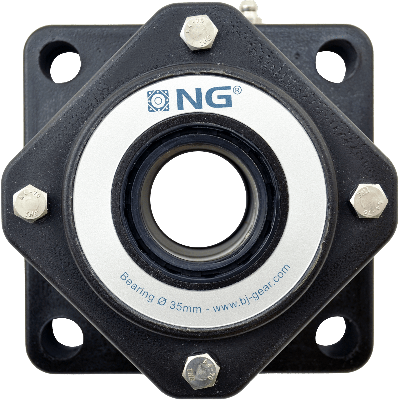

NG waterproof flange bearing Ø35 F4, 4-bolt, open cover
NG35F41The NG35F41 is a robust and hygienic flange bearing designed for demanding environments. Featuring a 4-bolt flange design and a closed end cover, it ensures optimal protection against contaminants. The bearing is equipped with a polyurethane housing, known for its high resistance to corrosion, chemicals, and mechanical stress — ideal for industries requiring frequent washdowns.
With an IP66 classification, this bearing is waterproof and built to perform reliably in wet or washdown environments. The shaft size is Ø35 mm, offering compatibility with a wide range of industrial setups.
-
Housing material: Polyurethane
-
Flange type: 4-bolt
-
Cover type: Closed
-
Shaft size: Ø35 mm
-
IP rating: IP66 – Waterproof and washdown resistant
Made to order
Expected shipment:
Accessories
More Information
Description
Key features:
- Compact design: The flange housing is suitable for installations with limited space.
- Easy to clean: The housing features rounded corners and smooth surfaces, allowing for easy and efficient cleaning.
- Spherical PE lifetime lubricated ball bearing: This bearing is equipped with an excentric locking collar, ensuring reliable and smooth operation.
- Water-resistant: The bearing is equipped with an oil seal ring featuring a stainless steel spring, providing protection against water penetration, even when subjected to direct hosing.
- Maintenance-free: The bearing requires no additional maintenance, saving you time and effort.
- Tested and certified: The flange housing has undergone testing by the Danish Technological Institute.
Materials:
- Stainless steel grease nipple: The bearing is equipped with a grease nipple made of stainless steel, enabling optimal food-grade grease filling and preventing condensation in the bearing housing.
- Sturdy construction: The flange housing is made of PUR (polyurethane).
