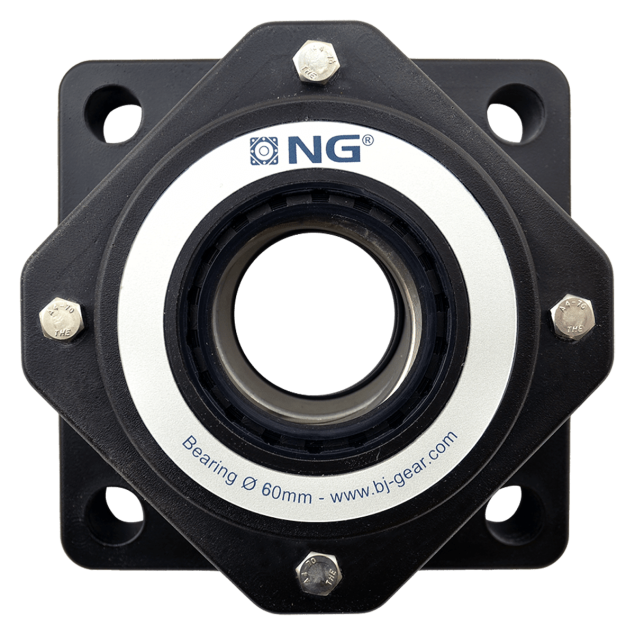

NG flange bearing F4 Ø60, 4-bolt, open cover
NG60F41
Specifications
Product description
Guide
Downloads
€182.00
Made to order
Expected shipment: 04-03-2025
More Information
Grease nipple
Straight
Hole distance (mm)
143
Shaft size (mm)
Ø60
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
F4
Mounting
Eccentric
Housing type
4-bolt flange bearing
House material
Polyurethane
Color
Black
IP classification
IP 66/67
Description

Key features:
- Save space with the NG flange bearing. It has an open cover that lets you clean and check it easily.
- No sharp edges or rough surfaces on the flange housing. You can clean it quickly and keep it free from dirt and debris.
- Enjoy a smooth and quiet operation with the special ball bearing. It lasts a long time and doesn't need much maintenance.
- Don't worry about water damage. The flange housing has a seal ring with a metal spring that keeps water out, even if you hose it down.
- Quick installation. The flange bearing has four mounting holes that match other cast iron flange housings on the market. You can install it in any direction you want.
- Trust its durability and reliability. It can resist dust and water, so you can use it in harsh conditions. It has an IP66/67 rating for dust and water protection.
- Rely on its quality and performance. The flange housing is tested and approved by the Danish Technological Institute.
Materials:
- Made with a stainless steel grease nipple that lets you fill it with food-grade grease. This prevents moisture from getting in and keeps the bearing lubricated.
- The flange housing is made from a strong polyurethane (PUR) material. This makes it durable and flexible for different installation angles.
