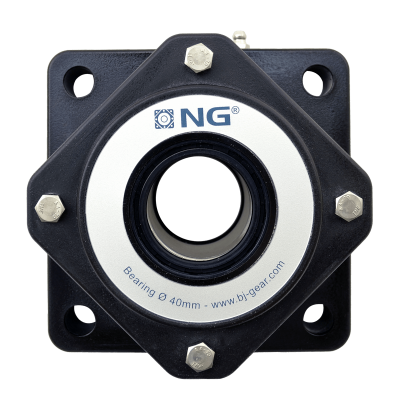

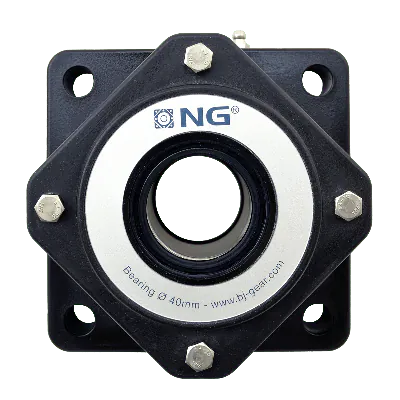

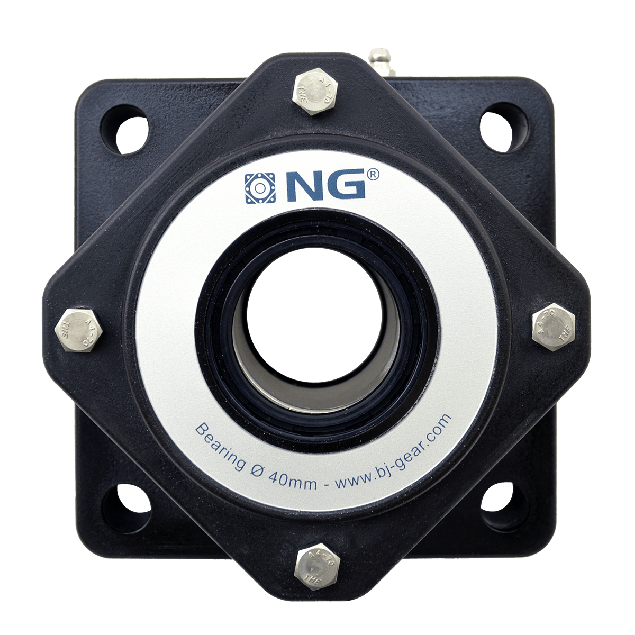

NG waterproof flange bearing F4 Ø40, 4-bolt, open cover

NG40F41

The NG flange bearing F4 Ø40 with open cover, is a versatile flange housing solution, designed to meet your industrial needs. With its compact design and easy-to-clean features, this bearing offers performance and durability.

Specifications

Product description

Guide

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 11-04-2025

Accessories

Bolt size M6x1
Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Bolt size M6x1
Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø40
Mounting Eccentric

NG insert bearing Ø40, stainless steel KI804050

€51.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

101.5

Shaft size (mm)

Ø40

Cover

Open

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

Mounting

Eccentric

Housing type

4-bolt flange bearing

House material

Polyurethane

Color

Black

IP classification

IP 66/67

Description

Key features:

Compact flange housing: The NG flange bearing features a compact flange housing with rounded corners and smooth surfaces, making it easy to clean and maintain.
Spherical PE lifetime lubricated ball bearing: The bearing is equipped with a spherical PE ball bearing, that requires no maintenance.
Excentric locking collar: The locking collar is designed to provide a secure and reliable fit.
IP66/67 rating: The flange housing is rated IP66/67, providing protection against dust and water ingress, making it suitable for various environments.

Materials:

Stainless steel grease nipple: The NG bearing comes with a stainless steel grease nipple, that allows for optimal food-grade grease filling.
Sturdy PUR flange housing: The flange housing is constructed using PUR (polyurethane).
