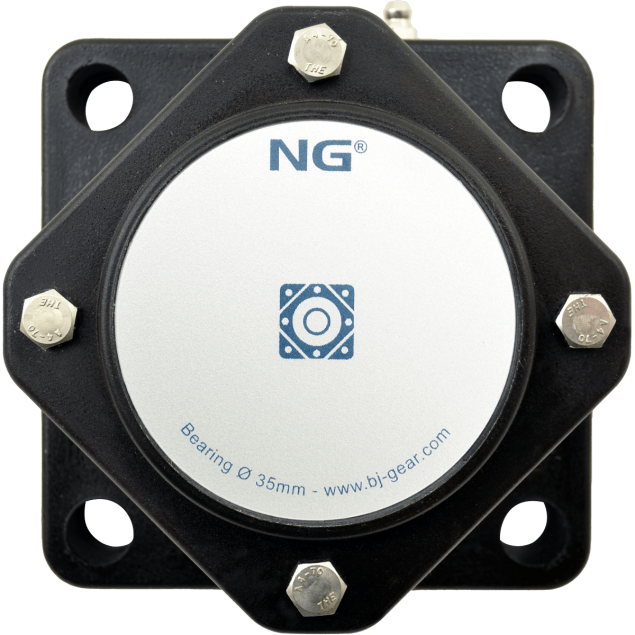

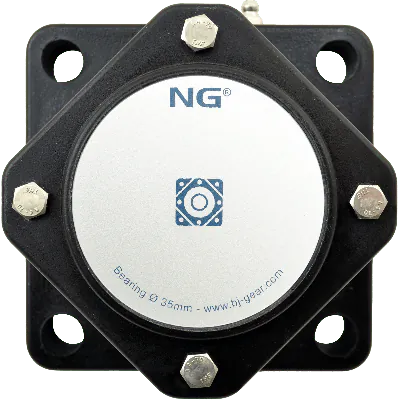

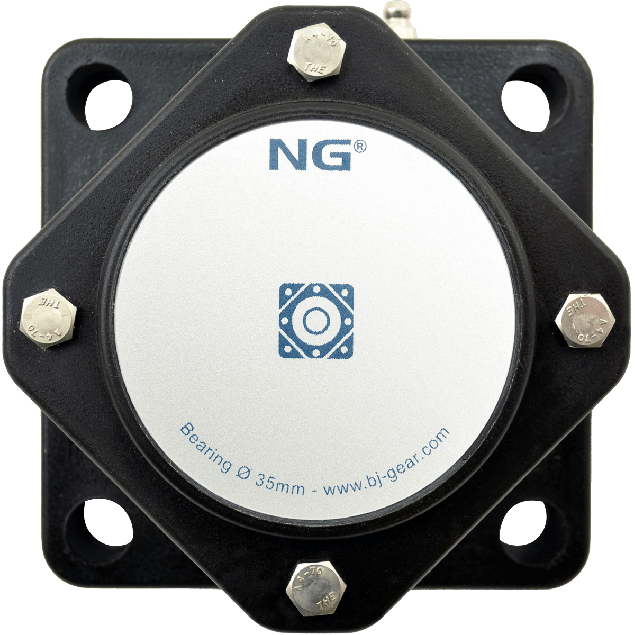

NG waterproof flange bearing F4 Ø35, 4-bolt, closed cover

NG35F40

The NG flange bearing F4 Ø35 with closed cover is a compact flange housing designed to provide reliable performance in various applications. Its innovative features and durable materials make it a ideal choice for demanding environments

Specifications

Product description

Guide

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

Accessories

Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø35
Mounting Eccentric

NG waterproof insert bearing PE Ø35, stainless steel KI803550

€42.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

Shaft size (mm)

Ø35

Cover

Closed

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

Mounting

Eccentric

Housing type

4-bolt flange bearing

House material

Polyurethane

IP classification

IP 66/67

Description

Key features:

Compact design with a bolted-on closed cover, for easy cleaning and maintenance.
Rounded corners and smooth surfaces on the flange housing facilitate hassle-free cleaning.
Spherical PE lifetime lubricated ball bearing, with an eccentric locking collar ensures smooth operation and extended lifespan.
Oil seal ring with a stainless steel spring offers water resistance, even when directly hosed.
Four mounting holes placed identically to other cast iron flange housings for easy integration.
IP66/67 rating ensures dust and water resistance.
The housing can be mounted in all angles, providing versatility for installation.
Requires no maintenance.

Materials:

Stainless steel grease nipple enables optimal filling of food-grade grease, preventing condensation within the bearing housing.
Flange housing made of PUR (Polyurethane) offers sturdiness and impact resistance.
