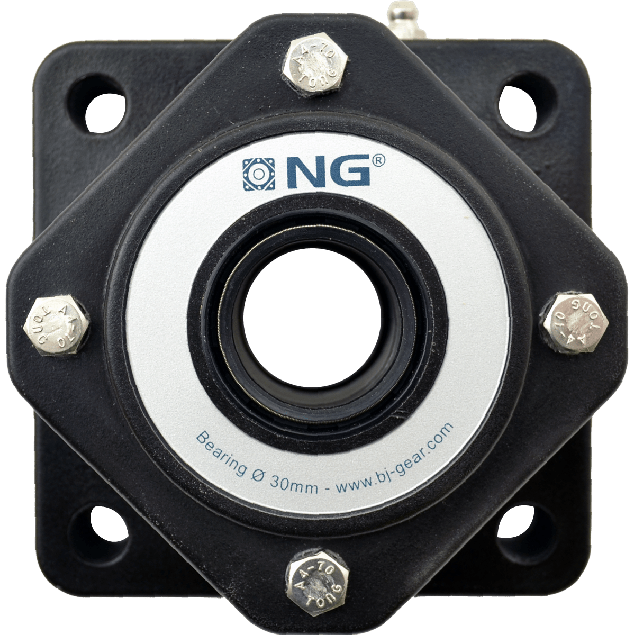

NG waterproof flange bearing F4 Ø30, 4-bolt, open cover

NG30F41

The NG30F41 is a hygienic flange bearing designed for industrial applications that require high durability and easy maintenance. It features a 4-bolt flange housing and an open end cover, enabling quick access for inspection and service while maintaining stable shaft support.

Built with a polyurethane housing, the bearing offers strong resistance to corrosion, chemicals, and mechanical stress. With an IP66 classification, it is fully waterproof and ideal for wet or washdown environments. The shaft size is Ø30 mm, making it suitable for versatile installations.

Housing material: Polyurethane
Flange type: 4-bolt
Cover type: Open
Shaft size: Ø30 mm
IP rating: IP66 – Waterproof and washdown resistant

€71.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Accessories

Grease nipple None
Shaft size (mm) Ø30
Sealing Nitrile rubber (NBR)
Mounting Eccentric

NG insert bearing PE Ø30, stainless steel BJ item number: KI803050

€35.00

excl. VAT

Grease nipple 45°

NG grease nipple M6x1, 45 degrees, stainless steel BJ item number: KI820015

€3.42

excl. VAT

Grease nipple 90°

NG grease nipple M6x1, 90 degrees, stainless steel BJ item number: KI820020

€4.26

excl. VAT

Description

Key Features:

Compact flange housing: The flange housing is designed to be compact and features rounded corners and smooth surfaces, making it easy to clean and maintain.
Spherical PE lifetime lubricated ball bearing: The bearing is made of a spherical PE ball bearing that requires no maintenance.
Excentric locking collar: The bearing is equipped with an excentric locking collar.
IP66/67 rated: The flange housing is IP66/67 rated, making it resistant to dust and water ingress, ensuring optimal protection in demanding environments.

Materials:

Stainless steel grease nipple: The bearing is equipped with a stainless steel grease nipple, allowing for easy and optimal food-grade grease filling and preventing condensation in the bearing housing.
PUR flange housing: The flange housing is made of sturdy PUR (Polyurethane).
