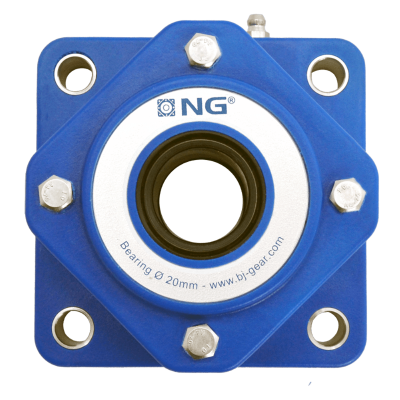

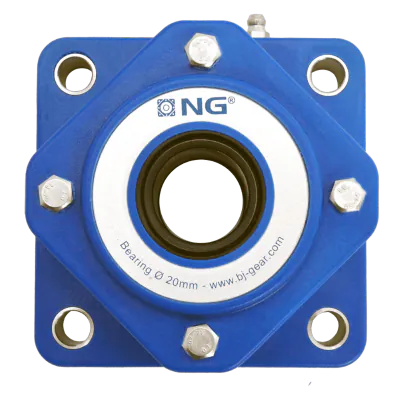

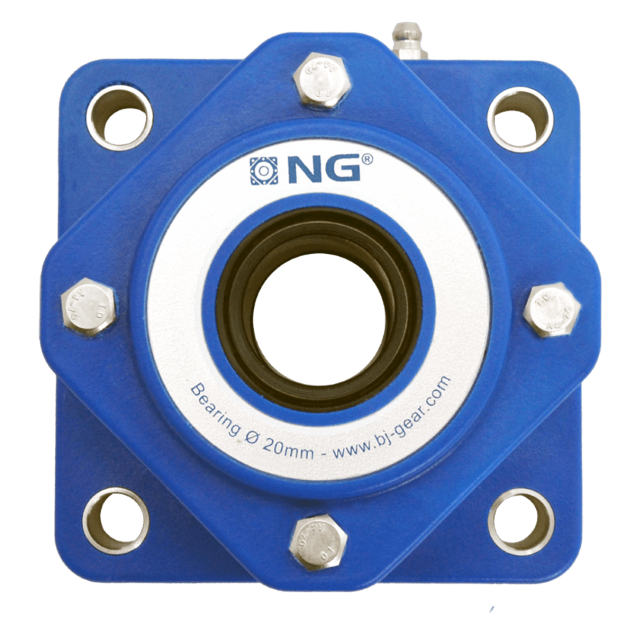

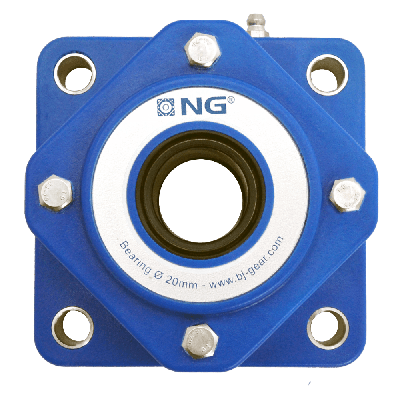

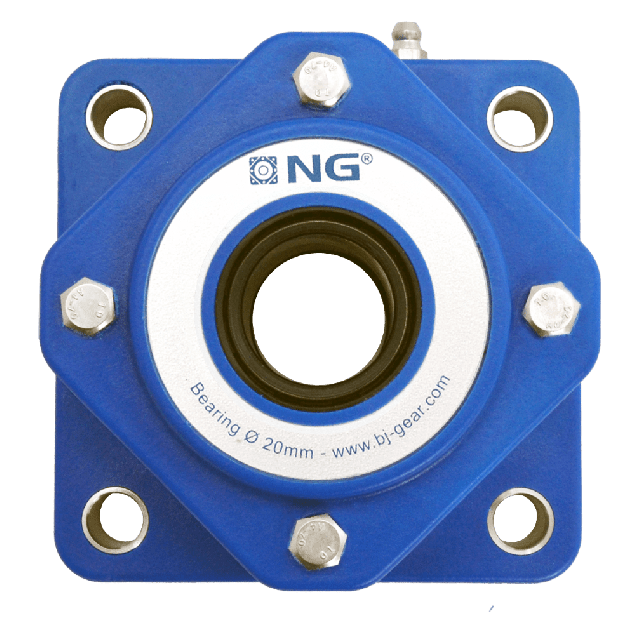

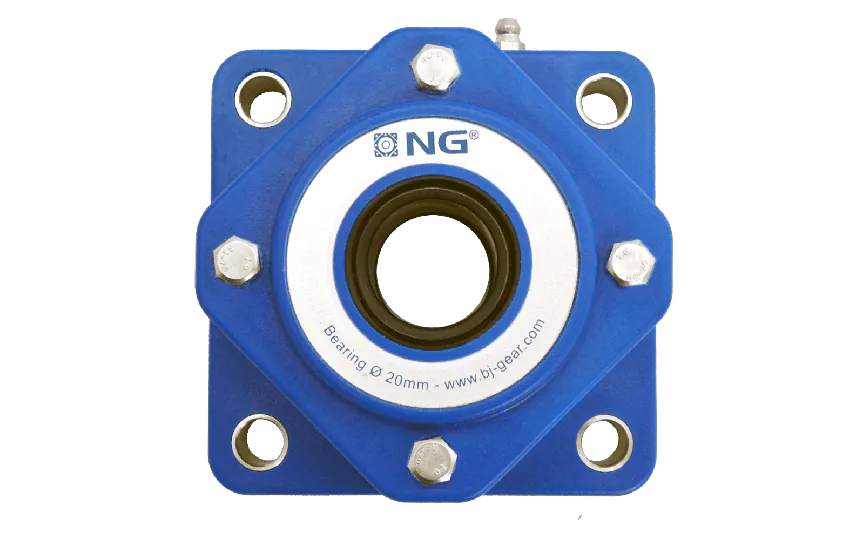

NG waterproof flange bearing F4 Ø20, 4-bolt, open cover, blue

NGB20F41

The NG waterproof flange bearing F4 Ø20 is a hygienic and corrosion-resistant bearing unit designed for demanding washdown environments such as food, beverage, and pharmaceutical production.

This 4-bolt flange bearing features a blue polyurethane housing with steel-reinforced mounting holes for exceptional durability. The housing is fitted with a stainless steel bearing insert and nitrile rubber (NBR) seals, ensuring reliable protection against dust, water, and aggressive cleaning chemicals. With an IP66/67 rating, it withstands both high-pressure washdowns and temporary immersion.

The open cover allows for quick inspection and cleaning access, while the straight grease nipple enables efficient re-lubrication. An eccentric locking collar secures the bearing firmly to the shaft, preventing slippage during operation. Designed for Ø20 mm shafts with a hole distance of 63.5 mm, it ensures precise fit and stable performance.

Key advantages:

IP66/67 waterproof construction for washdown and submersible applications
Open cover for easy inspection and cleaning
Stainless steel bearing insert for high corrosion resistance
Blue polyurethane housing with steel-reinforced mounting holes
Eccentric locking collar for secure shaft fastening

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

Accessories

Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø20
Mounting Eccentric

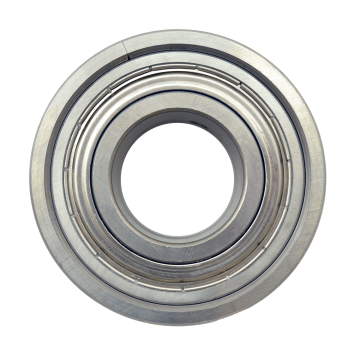

NG waterproof insert bearing PE Ø20, stainless steel KI802050

€23.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

63.5

Shaft size (mm)

Ø20

Cover

Open

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

Mounting

Eccentric

Housing type

4-bolt flange bearing

House material

Polyurethane

IP classification

IP 66/67

HS-Code

84832000.000000

Description

Key features:

Open cover for easy access: Quick to reach and clean, helping you keep up with strict hygiene standards without a fuss.
Bright blue color makes cleaning easier: You’ll see dirt at a glance, which means keeping things pristine is simpler than ever.
Built tough with hygienic materials: Comes with stainless steel bolts and nuts that are as durable as they are clean.
Extra strength where it counts: The mounting holes are reinforced with stainless steel, so this bearing is ready for the long haul.
Just right for the food biz: Designed to tackle the unique challenges of food processing environments.
Low hassle maintenance: It's super easy to take care of, saving you time and effort.

Materials:
