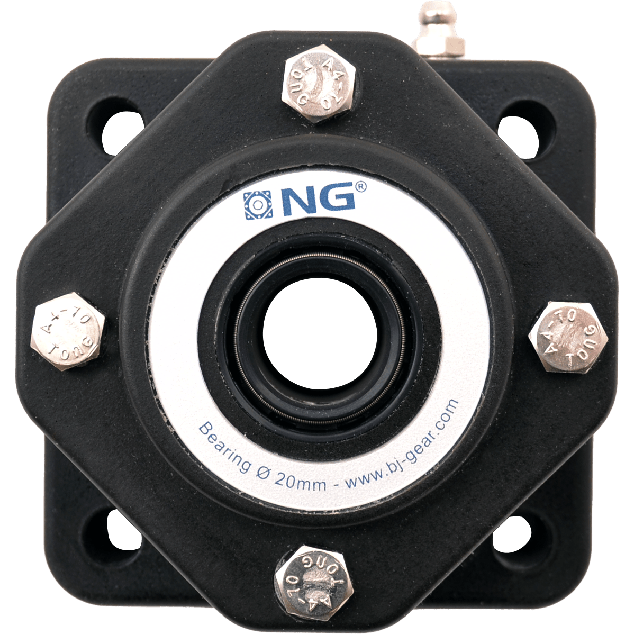

NG waterproof flange bearing F4 Ø20, 4-bolt, open cover

NG20F41

The NG20F41 is a hygienic flange bearing designed for industrial applications where cleanliness and reliability are essential. It features a 4-bolt flange housing and an open end cover, allowing for easy inspection and maintenance while supporting stable shaft operation.

Made with a polyurethane housing, this bearing provides excellent resistance to corrosion, chemicals, and mechanical stress. With an IP66 classification, it is fully waterproof and well-suited for wet or washdown environments. The shaft size is Ø20 mm, making it ideal for compact installations.

Housing material: Polyurethane
Flange type: 4-bolt
Cover type: Open
Shaft size: Ø20 mm
IP rating: IP66 – Waterproof and washdown resistant

€64.00

Excluded taxes and delivery costs

Made to order

Expected shipment:

Estimated Shipping:

Accessories

Grease nipple None
Shaft size (mm) Ø20
Sealing Nitrile rubber (NBR)
Mounting Eccentric

NG insert bearing PE Ø20, stainless steel BJ item number: KI802050

€23.00

excl. VAT

Grease nipple 45°

NG grease nipple M6x1, 45 degrees, stainless steel BJ item number: KI820015

€3.42

excl. VAT

Grease nipple 90°

NG grease nipple M6x1, 90 degrees, stainless steel BJ item number: KI820020

€4.26

excl. VAT

Description

Key features:

Compact design: The flange housing is very compact and features rounded corners and smooth surfaces.
Spherical PE lifetime lubricated ball bearing: The bearing is specially designed with a spherical PE ball bearing, that offers long-lasting lubrication.
Excentric locking collar: The bearing comes with an excentric locking collar.
IP66/67 rated: The flange housing has an IP66/67 rating, making it highly resistant to dust and water ingress, even when directly hosed.
Maintenance-free: The bearing requires no additional maintenance.

Materials:

Stainless steel grease nipple: The inclusion of a stainless steel grease nipple allows for optimal food-grade grease filling, preventing condensation within the bearing housing.
PUR flange housing: The flange housing is constructed from PUR (polyurethane).
