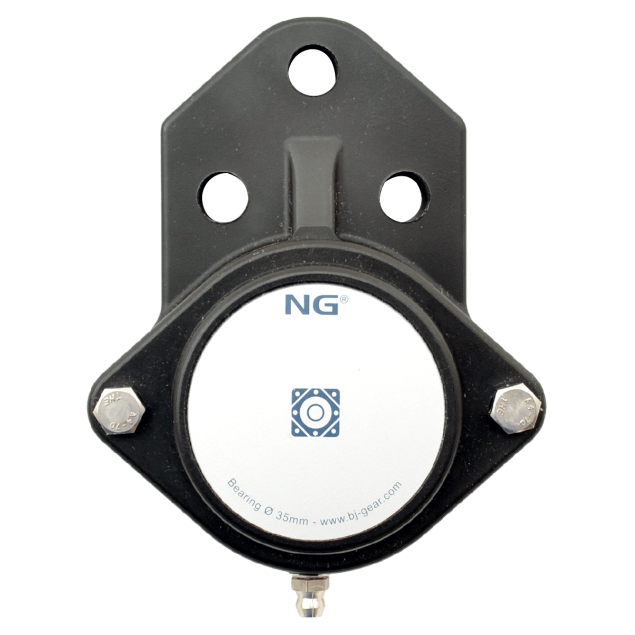

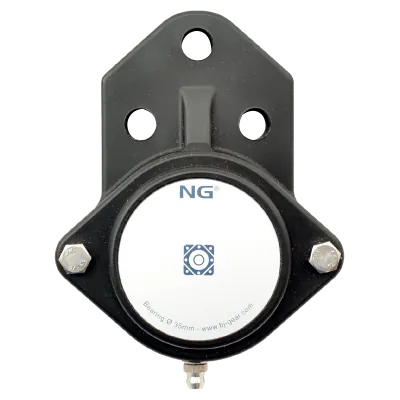

NG waterproof flange bearing F3 Ø35, 3-bolt, closed cover
NG35F30The waterproof NG flange bearing F3 Ø35 with closed cover, a compact and durable solution for your industrial needs. With its innovative design and high-quality materials, this flange bearing offers performance and reliability
Specifications
Product description
Guide
Downloads
€79.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
Grease nipple
Straight
Hole distance (mm)
50.2
Shaft size (mm)
Ø35
Cover
Closed
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
F3
Mounting
Eccentric
Housing type
3-bolt flange bearing
House material
Polyurethane
IP classification
IP 66/67
Description
Key features:
- Compact flange housing: The NG flange bearing features a compact flange housing with a bolted-on cover, ensuring easy access for maintenance and cleaning.
- Rounded corners and smooth surfaces: The flange housing is designed with rounded corners and smooth surfaces, allowing for effortless cleaning and preventing dirt accumulation.
- Spherical PE lifetime lubricated ball bearing: The bearing utilizes a spherical PE lifetime lubricated ball bearing with an eccentric locking collar.
- IP66/67 rating: The flange housing is IP66/67 rated, making it highly resistant to dust, water, and other environmental factors.
- Maintenance-free: The bearing requires no maintenance, saving you time and effort.
Materials:
- Stainless steel grease nipple: The bearing features a stainless steel grease nipple for optimal food-grade grease filling, preventing condensation and ensuring smooth operation.
- PUR flange housing: The flange housing is constructed with PUR (polyurethane).
Guide
In this video as we take you through the journey of making our NG bearings. Watch how the product is made from cast to assembly of the final product.
