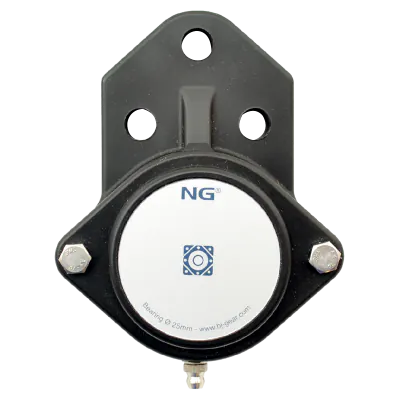

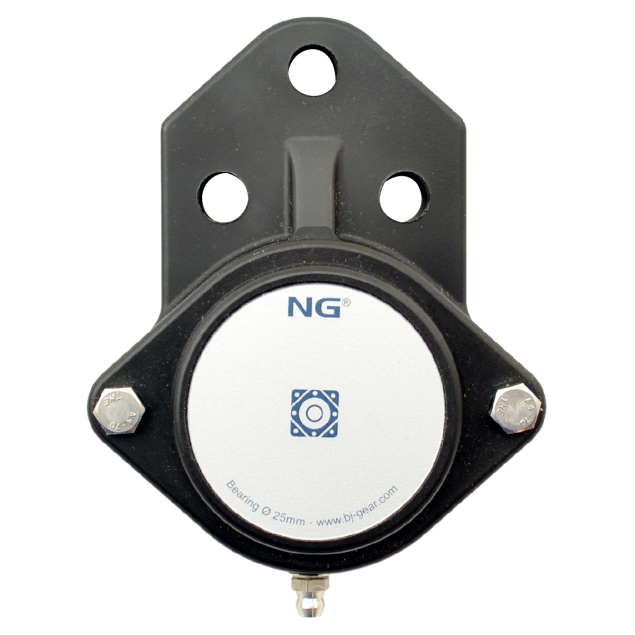

NG waterproof flange bearing F3 Ø25, 3-bolt, closed cover
NG25F30
Specifications
Product description
Guide
Downloads
€67.18
Made to order
Expected shipment: 06-01-2025
More Information
Grease nipple
Straight
Hole distance (mm)
41.3
Shaft size (mm)
Ø25
Cover
Closed
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
F3
Mounting
Eccentric
Housing type
3-bolt flange bearing
House material
Polyurethane
Color
Black
IP classification
IP 66/67
Description
Key features:
- Compact and easy to clean flange housing with rounded corners and smooth surfaces.
- Spherical PE lifetime lubricated ball bearing with eccentric locking collar for secure and hassle-free installation.
- Oil seal ring with a stainless steel spring to effectively seal out water, even under direct hosing.
- Three mounting holes designed to match other cast iron flange housings on the market for easy integration.
- IP66/67 for waterproof protection.
- Maintenance-free bearing for hassle-free operation.
- Tested and certified by the Danish Technological Institute for quality assurance.
Materials:
- Stainless steel grease nipple for optimal food grade grease filling and prevention of condensation in the bearing housing.
- Flange housing made of extremely sturdy PUR (polyurethane).
