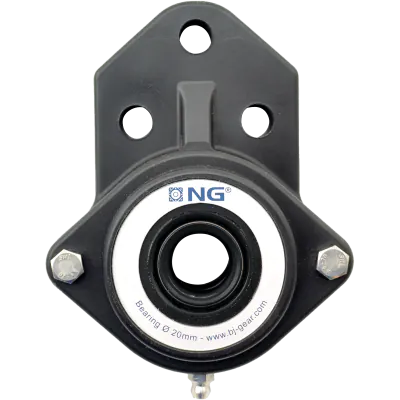

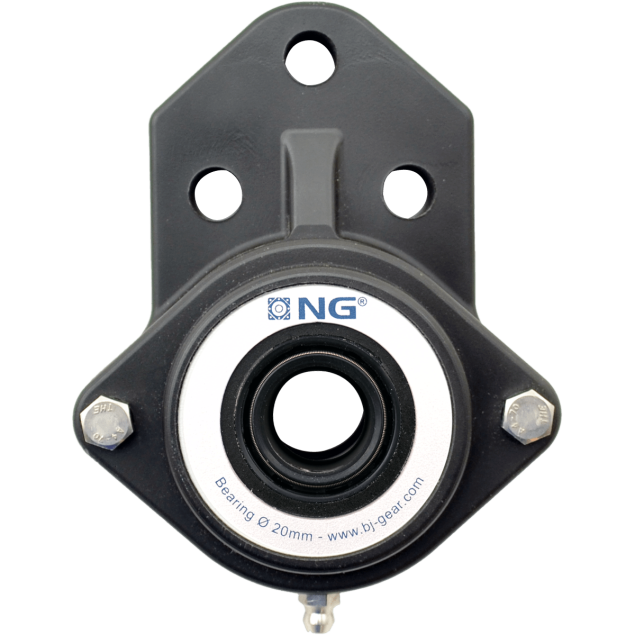

NG waterproof flange bearing F3 Ø20, 3-bolt, open cover

NG20F31

The NG flange bearing F3 Ø20 with open cover, is a reliable and waterproof solution, designed to meet your industrial needs. With its features and materials, this flange bearing guarantees optimal performance and durability in various applications

Specifications

Product description

Guide

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 09-05-2025

Accessories

Bolt size M6x1
Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Bolt size M6x1
Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø20
Mounting Eccentric

NG waterproof insert bearing PE Ø20, stainless steel KI802050

€23.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

38.1

Shaft size (mm)

Ø20

Cover

Open

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

Mounting

Eccentric

Housing type

3-bolt flange bearing

House material

Polyurethane

Color

Black

IP classification

IP 66/67

Description

Key features:

Compact flange housing: The NG flange bearing features a compact design with rounded corners and smooth surfaces, making it easy to clean and maintain.
Spherical PE lifetime lubricated ball bearing: Equipped with a spherical PE ball bearing, this flange housing ensures long-lasting and hassle-free operation without the need for maintenance.
Excentric locking collar: The bearing is equipped with an excentric locking collar.
IP66/67 rating: The flange housing is rated IP66/67, offering protection against water and dust ingress.

Materials:

Stainless steel grease nipple: The flange bearing includes a stainless steel grease nipple.
PUR flange housing: The housing is constructed from Polyurethane (PUR).
