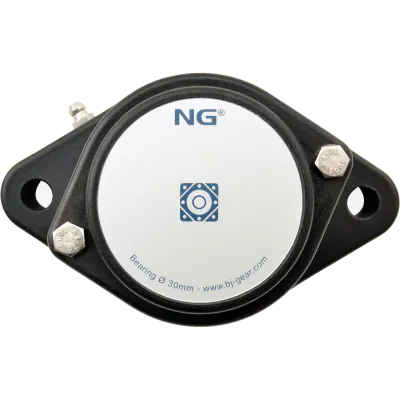

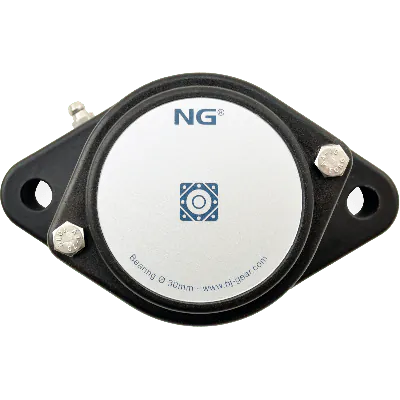

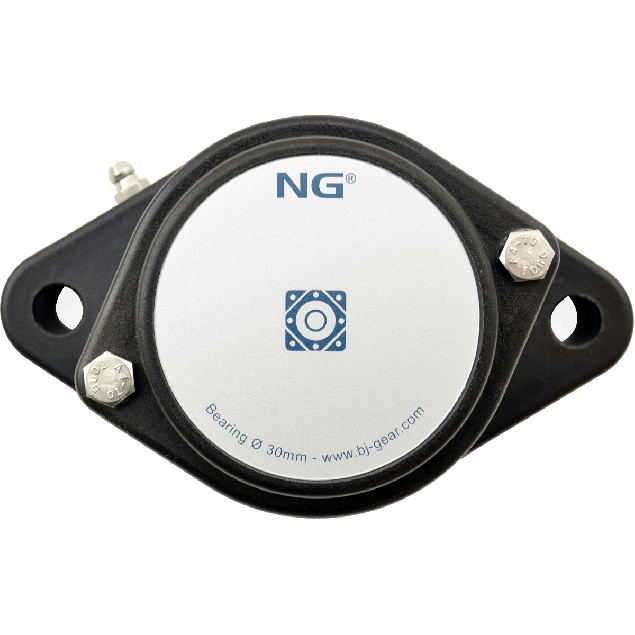

NG waterproof flange bearing F2 Ø30, 2-bolt, closed cover

NG30F20

The NG flange bearing F2 Ø30 with closed cover, a versatile and reliable solution for your industrial needs. Designed with precision and durability, this compact flange housing is equipped with key features, that ensure optimal performance and long-lasting functionality

Specifications

Product description

Guide

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment: 04-04-2025

Accessories

Bolt size M6x1
Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Bolt size M6x1
Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø30
Mounting Eccentric

NG insert bearing Ø30, stainless steel KI803050

€35.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

117

Shaft size (mm)

Ø30

Cover

Closed

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

Mounting

Eccentric

Housing type

2-bolt flange bearing

House material

Polyurethane

Color

Black

IP classification

IP 66/67

Description

Key Features:

Rounded corners and smooth surfaces for easy cleaning and maintenance.
Spherical PE lifetime lubricated ball bearing with excentric locking collar for enhanced stability.
Oil seal ring with a stainless steel spring to provide a watertight seal, even when subjected to direct hosing.
Two mounting holes placed identically to other cast iron flange housings on the market, for seamless integration.
IP66/67 rated, guaranteeing superior protection against dust and water ingress.
Maintenance-free bearing that reduces downtime and upkeep costs.
Can be mounted in all angles, allowing for versatile installation options.

Materials:

Stainless steel grease nipple for optimal food-grade grease filling, preventing condensation in the bearing housing.
Flange housing made of PUR (polyurethane).
